Description

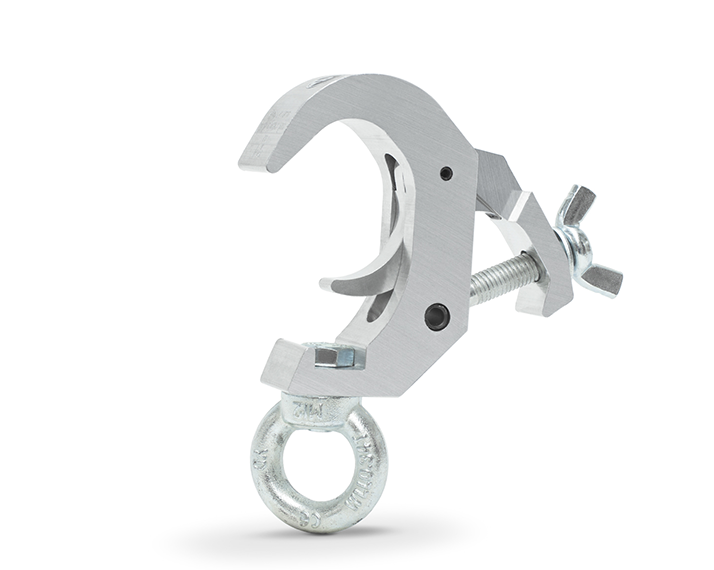

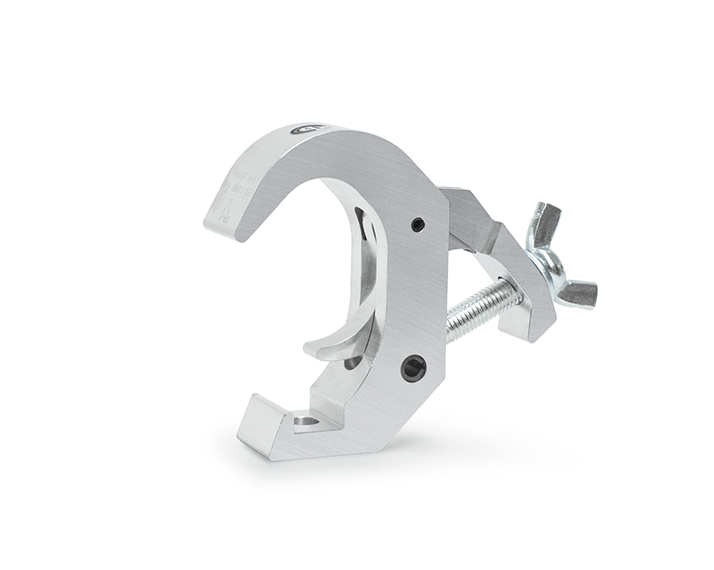

The 400 series cell clamps are designed for use with 38 - 51 mm (1 1/2"– 2") tubes. Mounting hole suitable for up to 13mm (1/2") bolt. Supplied with M12 closing botl.Call or e-mail us today for more information or to request a quote.

Key benefits

• Quick hook clamp series designed to suit 38-51mm (1 1/2"-2") diameter tubes
• M290 / M390 / M400 / M520 / M760 / 4 GS-35 / 4GS-50 / 4GS-62 compatible

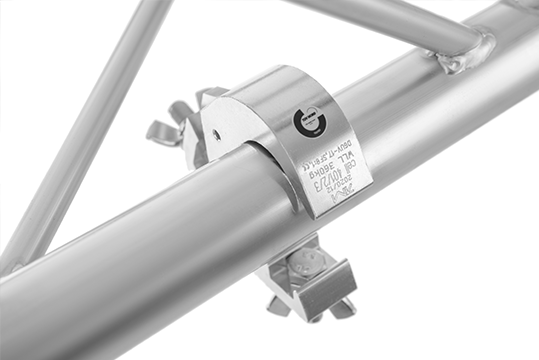

• Quick & easy attachment solution for moving heads
• Mounting hole suitable for up to 13mm (1/2") bolt
• Precision extruded high tensile aluminium alloy
• Polished surface with micropercussion marking
• DGUV 17 / BGV C1 rating

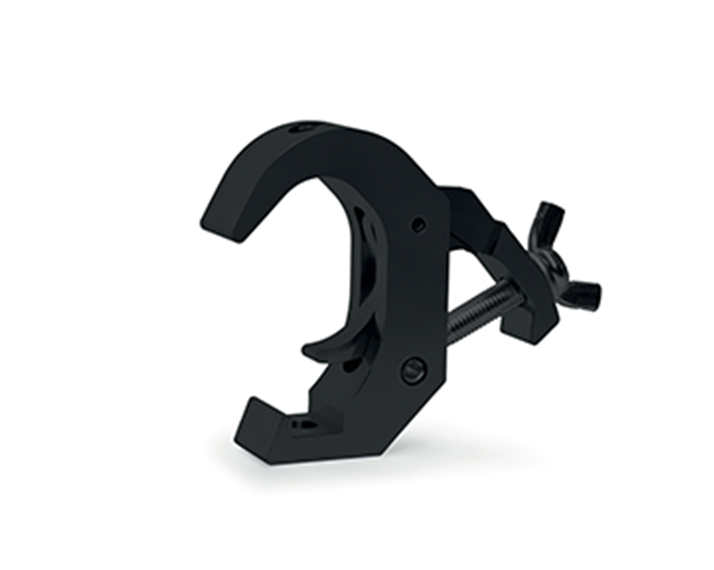

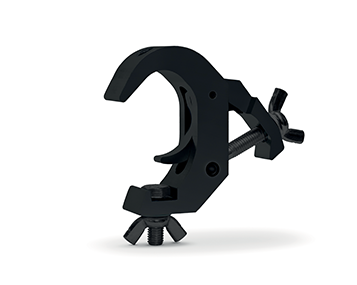

• Powder coat versions available on request

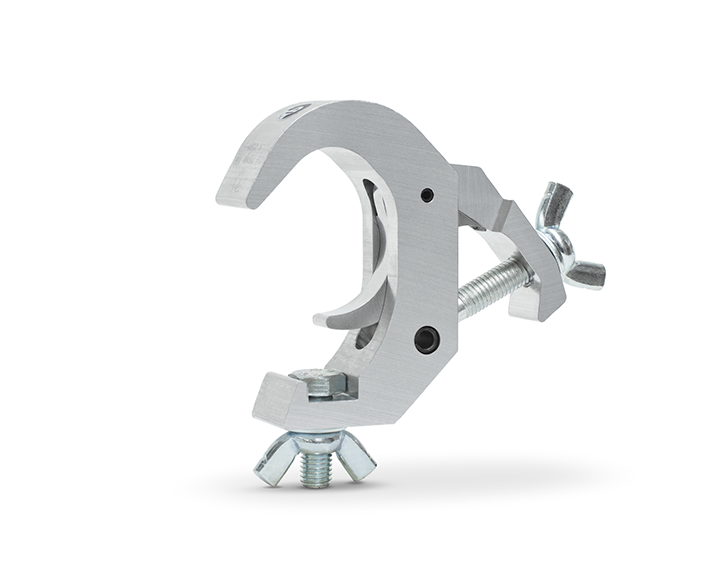

• Supplied with M12 closing bolt & wingnut
• Rated with SF 8:1 (kg) DGUV-17/BGV C1 (SWL1)
• Rated with SF 4:1 (kg) 2006/42/EC (SWL2)
