Detailed information

Description

The 22000 x 770 mm MILOS 2000 Folding ultra-strength steel truss saves you money by requiring less storage and transport space due to the folding design of its lateral diagonals. After folding, the dimensions change to 2026 x 273 mm.

Made from special, ultra-high strength steel alloys, it handles unbelievably high loads on extremely wide spans. This makes it a truly unique product for the event industry. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.

Key benefits

  • Foldable design
  • Unique product for the event industry
  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • Optimised webbing pattern for ease of use when assembling cross trusses
  • Connection kit supplied with every truss length
Standard lengths and weights available
Lengths 3.28ft 6.56ft 8.20ft 9.84ft 13.12ft 16.41ft 19.68ft
Weights 536.16 lbs 771.62 lbs 853.62 lbs 935.42 lbs 11158.31 lbs 11382.52 lbs 1606.51 lbs

Loading chart
Span 82 ft 98,4 ft 114,8 ft 131,2 ft 147,6 ft 164,1 ft 180,5 ft 196,9 ft
Point load 54975 lbs 44629 lbs 37055 lbs 31214 lbs 26528 lbs 22650 lbs 19360 lbs 16511 lbs
Deflection 3,67 inch 5,34 inch 7,37 inch 9,71 inch 12,48 inch 15,64 inch 19,23 inch 23,32 inch
Two point load 36821 lbs 33472 lbs 27792 lbs 23410 lbs 19896 lbs 16987 lbs 14520 lbs 12383 lbs
Deflection 4,17 inch 6,67 inch 9,09 inch 11,93 inch 15,13 inch 18,76 inch 22,78 inch 27,22 inch
Three point load 24548 lbs 22315 lbs 18529 lbs 15607 lbs 13263 lbs 11325 lbs 9680 lbs 8256 lbs
Deflection 3,9 inch 6,24 inch 8,54 inch 11,19 inch 14,27 inch 17,75 inch 21,65 inch 25,94 inch
Four point load 18410 lbs 18088 lbs 15439 lbs 13005 lbs 11054 lbs 9437 lbs 8066 lbs 6880 lbs
Deflection 3,71 inch 6,44 inch 8,97 inch 11,78 inch 14,98 inch 18,56 inch 22,54 inch 26,99 inch
Distributed load 989 lbs 735 lbs 619 lbs 476 lbs 360 lbs 276 lbs 214 lbs 168 lbs
Deflection 3,12 inch 5,42 inch 8,62 inch 11,70 inch 14,86 inch 18,45 inch 22,43 inch 26,83 inch

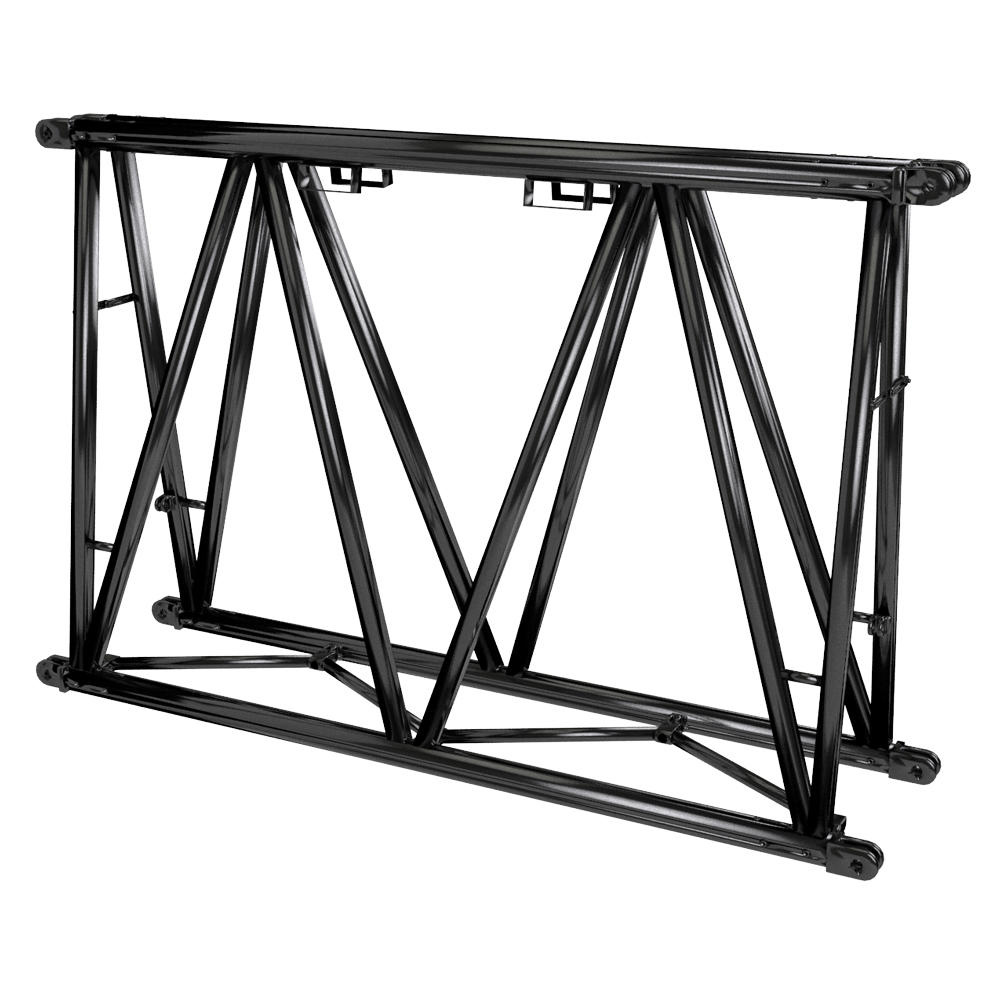

S-FTZ 200 Folding Steel Truss

Foldable steel truss that handles the heaviest loads, while taking up less space

Code
S-FTZ
Width
770 mm
Height
2000 mm
Main Tube
101.6 x 4 mm
Braces
60 x 60 x 4 mm / 48.3 x 3.2 mm
Self Weight
142 kg/m (for 3m piece)
