Description

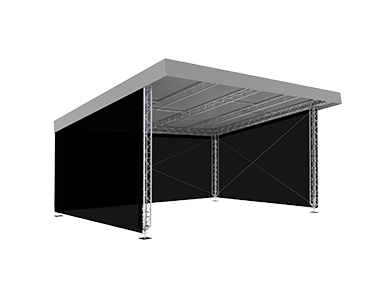

MRO Roofs are a cost effective temporary roofing solution that provide you with quick and easy assembly and tear down. Its gently sloping roof and simple construction make it the perfect choice for many types of events, from music festivals to outdoor conventions.

Call or e-mail us today for more information or to request a quote.

Key benefits

26.25x19.70 ft Sloping Roof set-up for temporary events
Heavy-duty M290 Quatro structure with Duo canopy support
Gentle sloping roof designed using special wedges & reinforced multi-cubes
Supplied complete with internal wind bracing wires & connection accessories
Full structural calculation report & build manual available
PVC roof color options and side walls available

Technical specifications
Dimensions		Stage size	8x6 m	26.25x19.70 ft
	A	Internal width	8.50 m	27.89 ft
	B	Overall external width	9.24 m	30.31 ft
	C	Internal depth	6.50 m	21.33 ft
	D	Overall external depth	7.29 m	23.92 ft
	E	Clearance front	4.74 m	15.55 ft
	F	Clearance back	3.62 m	11.88 ft
	G	Overall height	5.08 m	16.67 ft
	H	Cantilever depth	0.80 m	2.62 ft

Loading capacity
Loading capacity		Stage size	8x6 m	26.25x19.70 ft
	Back & side truss	Uniformly distributed (UDL)	30 kg/m	20 lbs/ft
	Middle truss	Uniformly distributed (UDL)	10 kg/m	6 lbs/ft
	Cantilever truss	Uniformly distributed (UDL)	20 kg	14 lbs
	PA load	Point load each cantilever corner	100 kg	220 lbs
	* See structural report for exact load position

Operational specifications
Design standards	DIN EN 13814 (2005) DIN EN 1991 / Eurocode 1 DIN EN 1999 / Eurocode 9 DIN EN 1993 / Eurocode 3	Fairground and amusement park machinery andstructures Actions on structures Design of aluminum structures Design of steel structures
Design standards	• All of our structures are produced as standard under EN 1090 EXC2, including the neccessary guy wires, instruction manual and engineering report
Wind management	Out of service In service	28.0m/s - 100km/h - 62mph (Max. gust windspeed) 17.8m/s - 64km/h - 40mph (Max. gust wind speed)
Wind management	* Calculations based on 100% closed side canopies * Side canopies and loads to be removed above this windspeed if not considered
Ballast	This can vary per tower from 450kg / 992lbs up to 2700kg / 5947lbs and depends on: • If tower bases are interconnected or freely standing • Lay-out of canopies • Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions) • Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls	B1 fire retardant canopy on request, single piece format Silvergrey; other colors or inside black on request B1 fire retardant side nets in compliance with latest Eurocodes
Customized	Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on requirement

Transportation data
Self-weight	Stage size	8x6 m	26.25x19.70 ft
Self-weight	* Exact self-weight depends on configuration	600 kg	1322 lbs
Transport volume	* Packed in carton boxes and bubble foil	5 m3	176 ft3
