The largest roof in the Milos MR range for immense concert stages at the most demanding events.

Code: MR5 24x14m, MR5 20x14m, MR5 18x14m

Max. Stage Dimensions: 78.74x45.93 ft

Max. Clearance: 47.34 ft

Max. SWL: 27533 lbs

Wind Rating: 40/62 mph (in/out of service)

Detailed information

Description

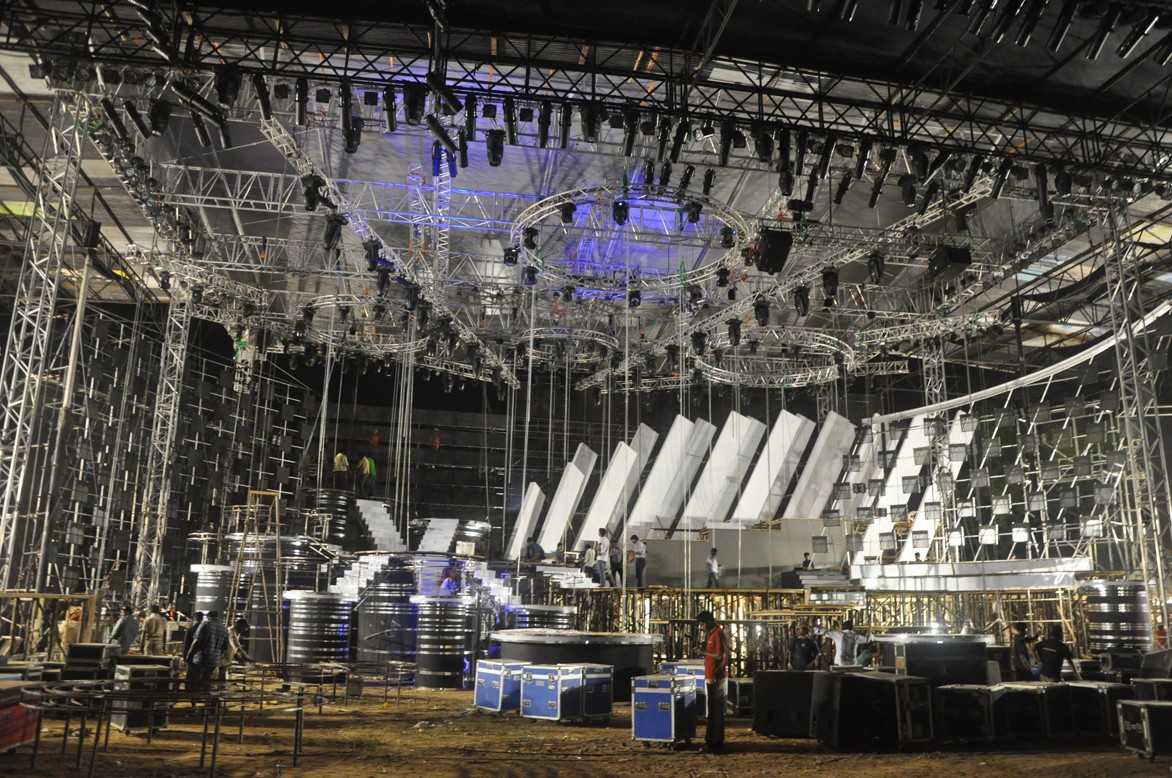

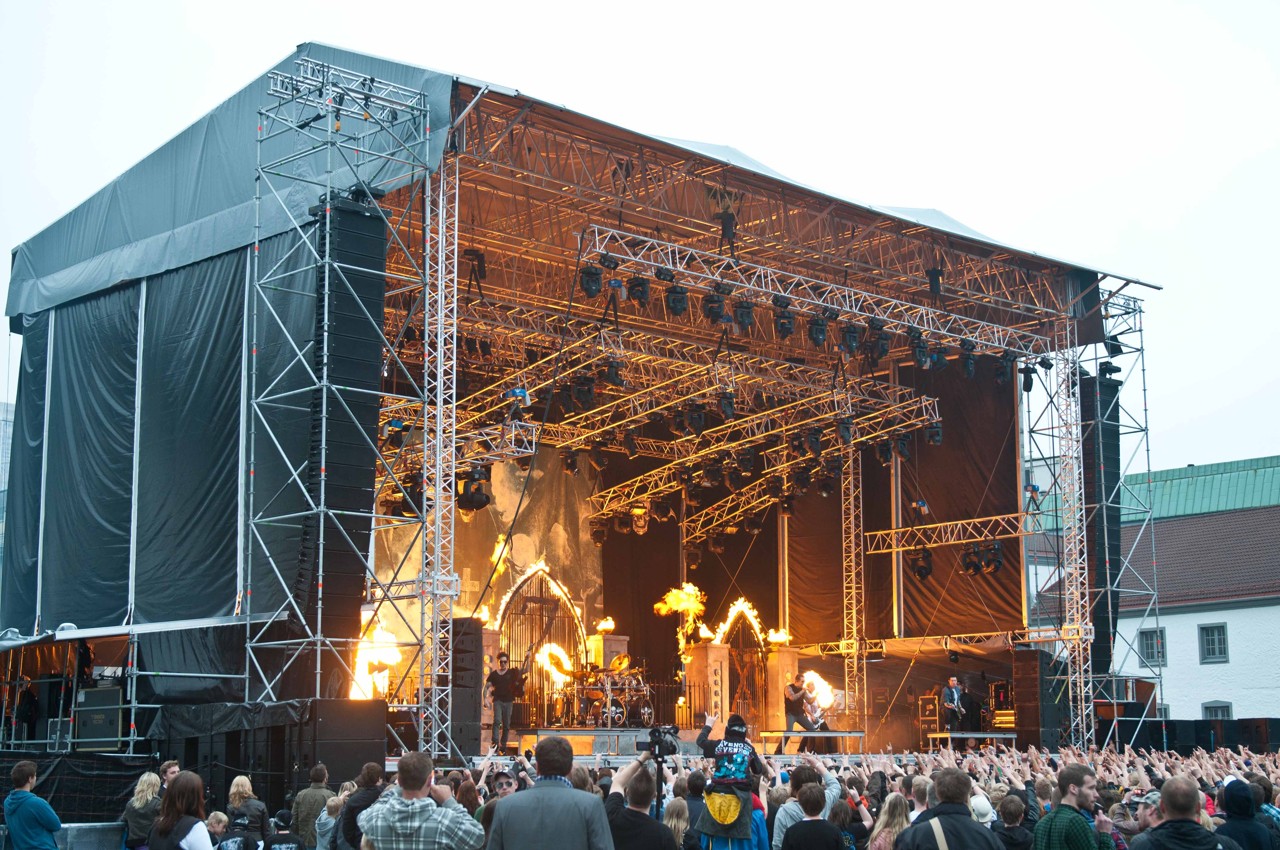

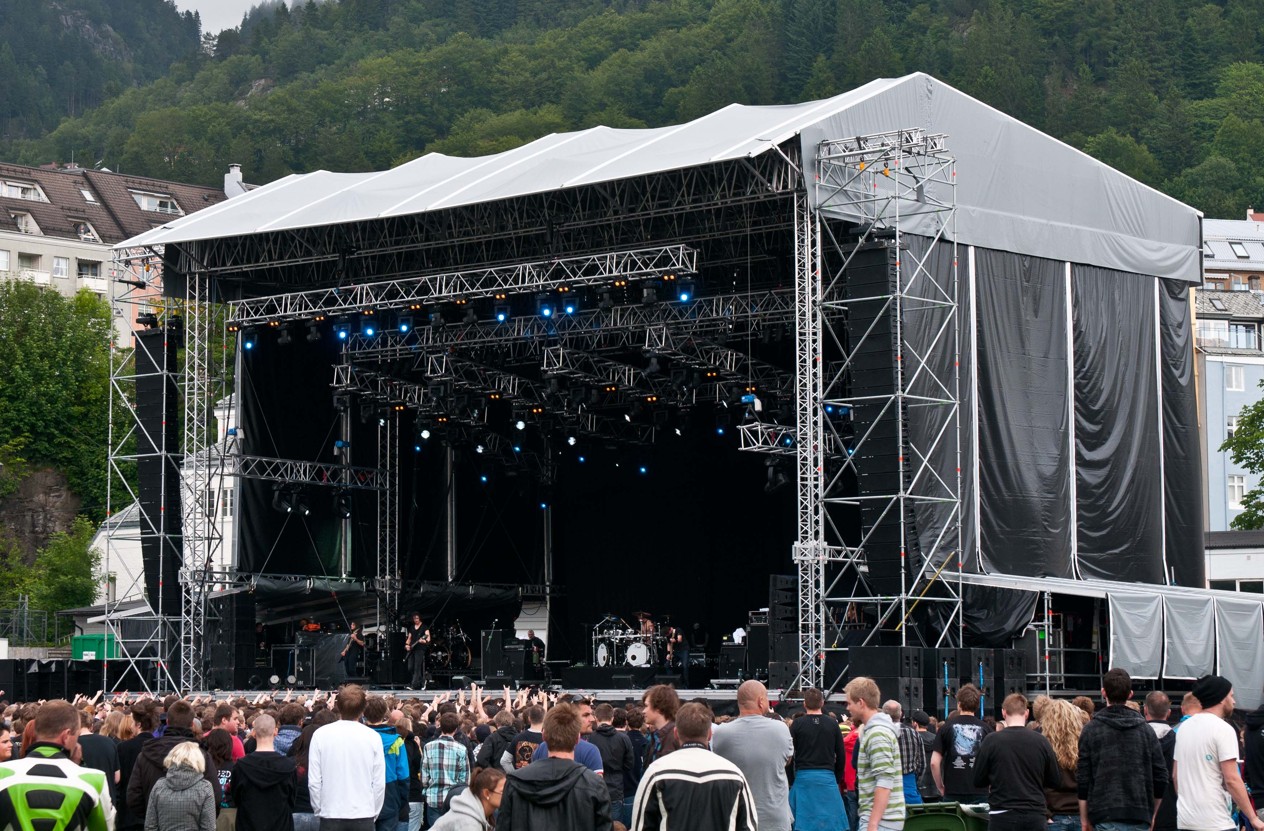

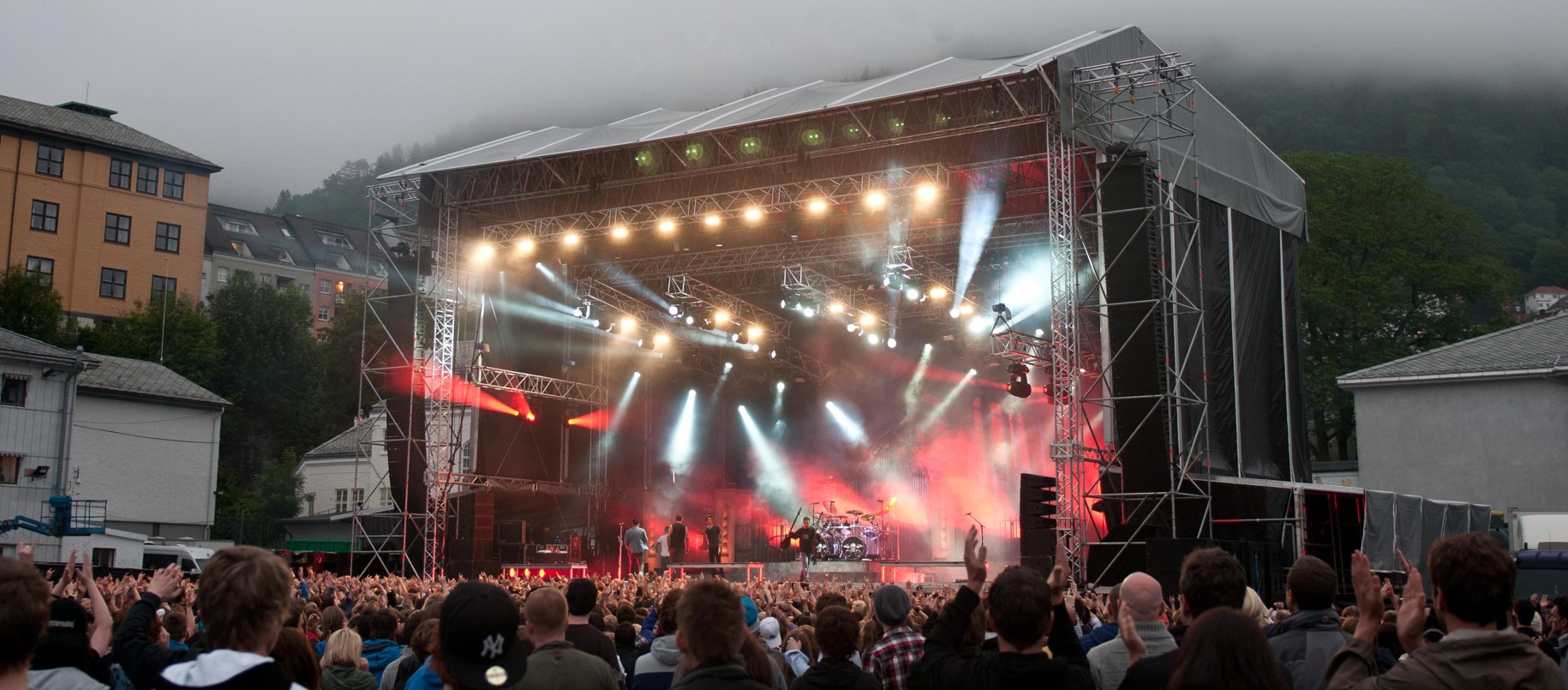

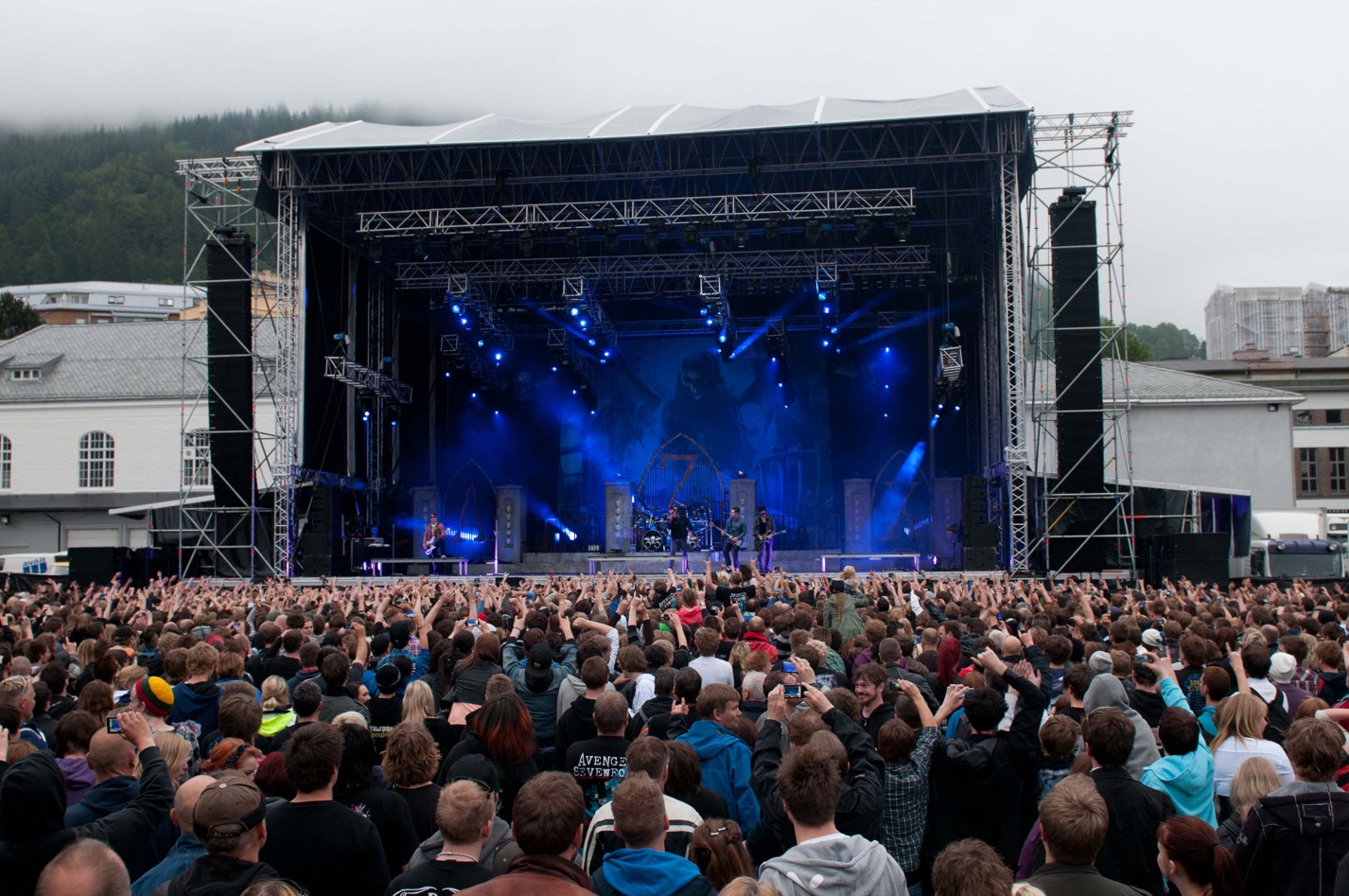

Whoever said that size doesn’t matter hasn’t seen the MR5 in action. The MR5 is the largest roof in the Milos MR range and creates a huge concert stage area that can accommodate the biggest and most demanding events. Manufactured to strict specifications by certified welders, the MR5 is delivered with both static calculations and an assembly manual. Call or e-mail us today for more information or to request a quote.

Key benefits

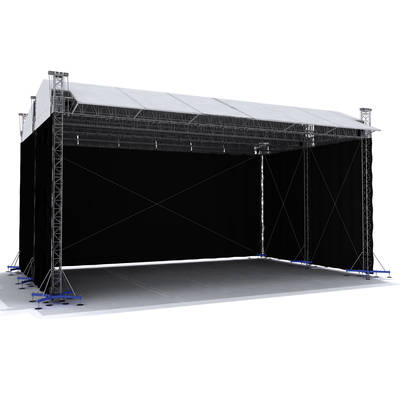

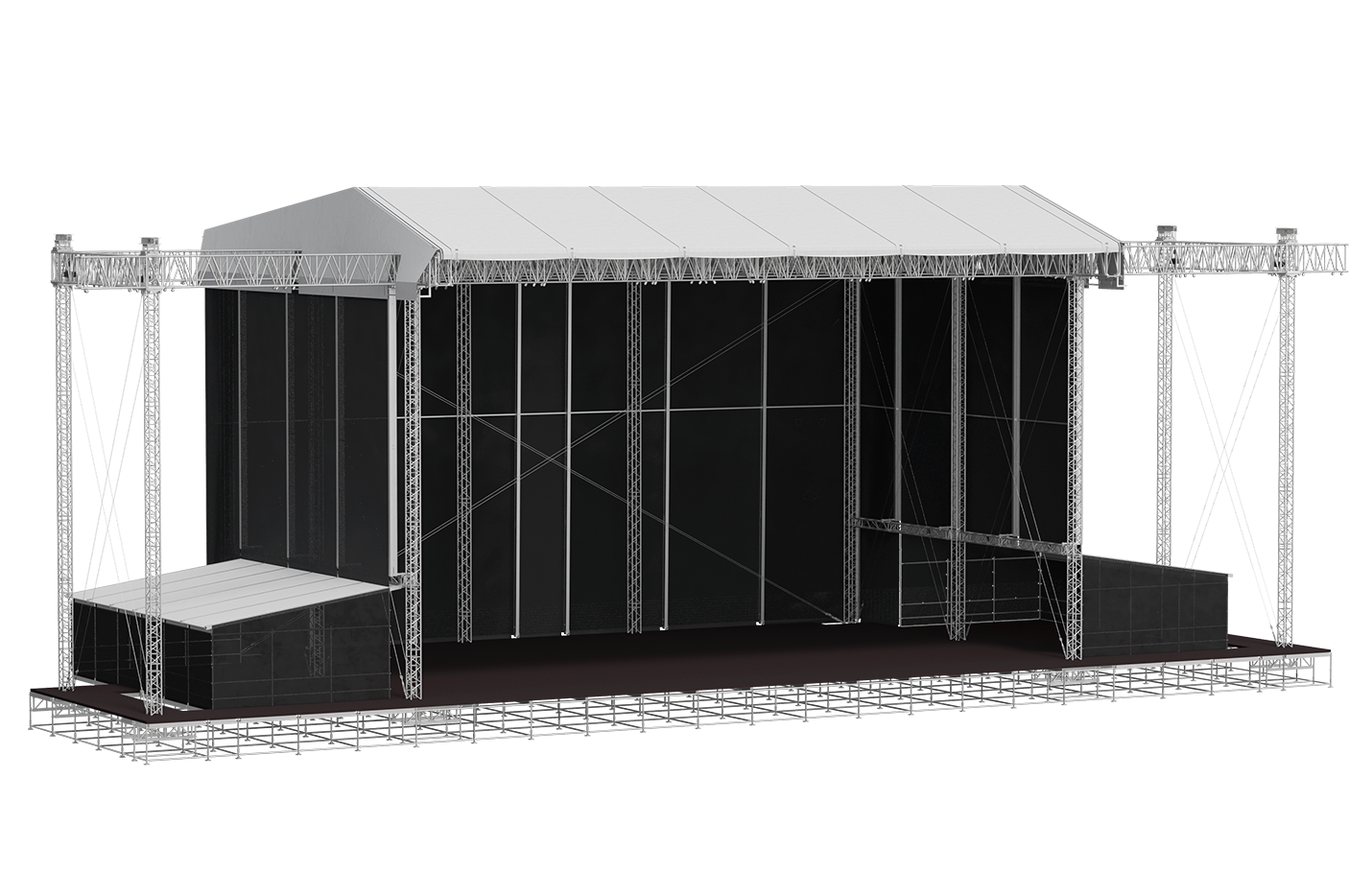

MR5 Mega-Pitched Roof structure for temporary events
MT2 / MT3 self-climbing towers upto 41.01 ft high with M950 main grid
M950 folding series used to minimise volume for storage & transporation
Easy back stage area integration to main structure
Supplied complete with internal wind bracing wires & connection accessories
Full structural calculation report & build manual available
PVC roof colour and side wall keder options
Integrated tower base / stage components available
PA / Video wing options available on request
EXE hoists recommended

Downloads

MR5

Contact Us

USA

Asia

Click here to contact us

Technical specification
Dimensions		Stage size	24x14 m	78,74x45,93 ft	20x14 m	65,62x45,93 ft	18x14 m	59,06x45,93 ft
	A	Internal width	24,76 m	81.23 ft	20,76 m	68.11 ft	18,76 m	61.55 ft
	B	Overall external width	27,84 m	91.34 ft	23,84 m	78.22 ft	21,84 m	71.65 ft
	C	Internal depth	14,74 m	48.36 ft	14,74 m	48.36 ft	14,74 m	48.36 ft
	D	Overall external depth	17,80 m	58.40 ft	17,80 m	58.40 ft	17,80 m	58.40 ft
	E	Clearance	11,48 m	37.66 ft	11,48 m	37.66 ft	11,48 m	37.66 ft
	F	Overall height	14,43 m	47.34 ft	14,43 m	47.34 ft	14,43 m	47.34 ft
	G	Cantilever depth	2,02 m	6.63 ft	2,02 m	6.63 ft	2,02 m	6.63 ft

Loading capacity
Loading capacity		Stage size	24x14 m	78,74x45,93 ft	20x14 m	65,62x45,93 ft	18x14 m	59,06 x45,93 ft
	Main grid	Uniformly distributed (UDL)	12500 Kg	27533 lbs	12500 Kg	27533 lbs	12500 Kg	27533 lbs
		Point loads	17500 Kg	38546 lbs	17500 Kg	38546 lbs	17500 Kg	38546 lbs
	PA wing	Central point load (CPL)	1500 Kg	3304 lbs	1500 Kg	3304 lbs	1500 Kg	3304 lbs
	* See structural report for exact load positioning

Operational specifications
Design standarts	DIN EN 13814 (2005) DIN 1055-4 DIN 4113 DIN 18800	Fairground and amusement park machinery and structures Actions on structures / wind Design of aluminium structures Design of steel structures
Design standarts	• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management	Out of service In service	28,3m/s - 100km/h - 62mph (Max. gust windspeed 17,8m/s - 64km/h - 40mph (Max. gust windspeed)
Wind management	* Calculations based on 100% closed side canopies * Side canopies to be removed above this wind speed if not considered
Ballast	This can vary per tower from 2375kg / 5231lbs up to 12700kg / 27973lbs and depends on: • If tower bases are interconnected or freely standing • Lay-out of canopies • Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions) • Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls	B1 fire retardant canopy, in kedders, configurable for different sizes on request Silvergrey; other colors or inside black on request B1 fire retardant side nets in compliance with latest Eurocodes
Customized	Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on requirement

Transportation data
Self-weight	Stage size	24x14 m	78,74x45,93 ft	20x14 m	65,62x32,81 ft	18x14 m	59,06x45,93 ft
Self-weight	* Exact self-weight depends on configuration	7200 kg	15859 lbs	6435 kg	14174 lbs	6600 kg	14537 lbs
Transport volume	* Packed in carton boxes and bubble foil	120 m3	4237 ft3	100 m3	3531 ft3	90 m3	3178 ft3
