Code: MR6 26x16, 30x16

Detailed information

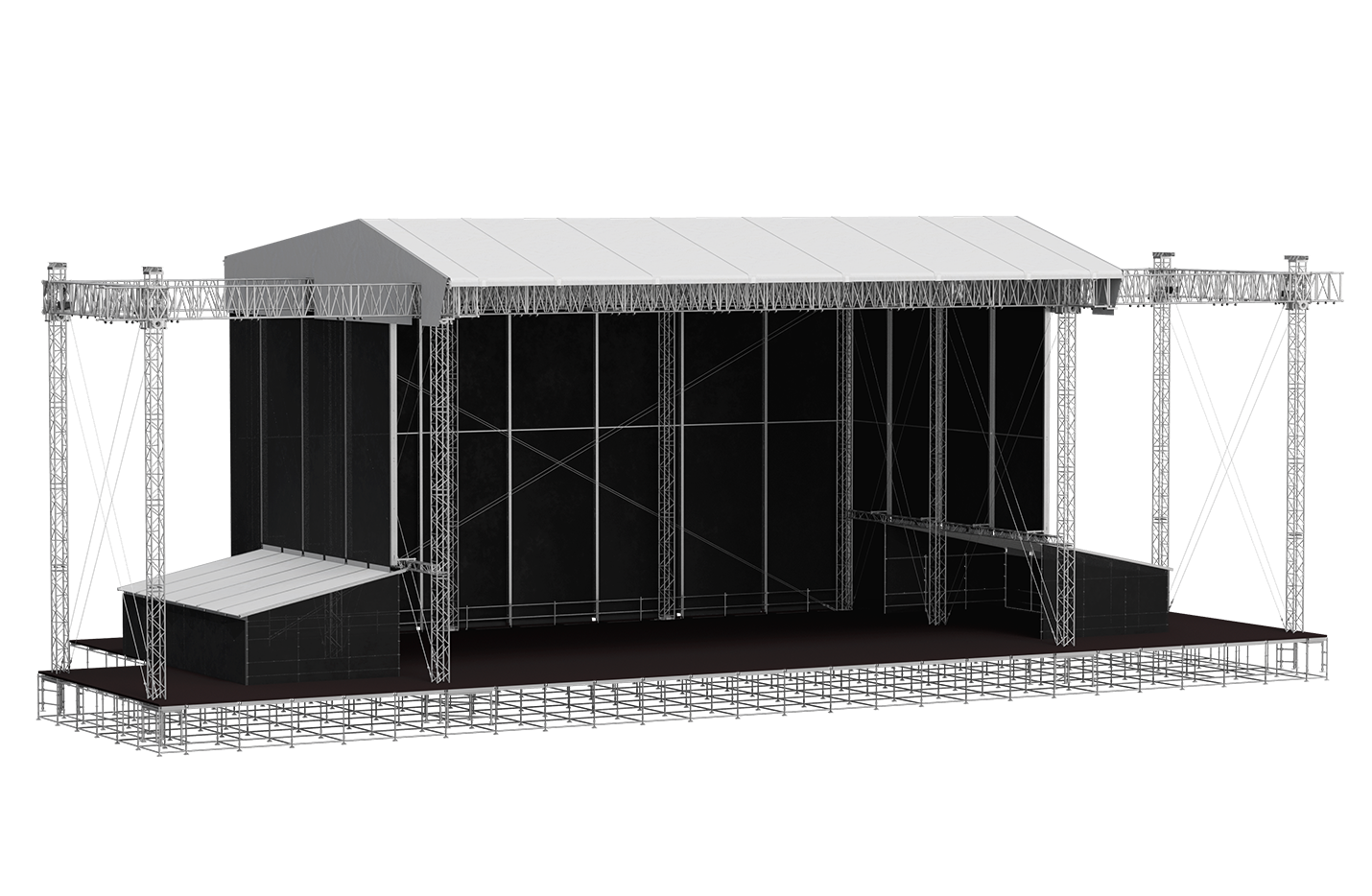

•MR6 large-scale pitched roof structure
•Standard or Arnold version for max. loading capacity
•Dimensions 26×16 m (85×52 ft) or 30×16 m (98×52 ft)
•Loading capacity up to 50 t (110228 lbs) with 26×16 m (85×52 ft) Arnold configuration
•Clearence height 13.3 m (43.63 ft)
•Main grid constructed of 5 spans of M1200 RTR truss
•Rear and side walls from keder profiles for easy canopy installation
•Range of PVC colours and options available covered backstage areas on sides as an option
• PA wings options available on request

Contact Us

Asia

US East

Click here to contact us

Technical specification
Dimensions		Stage size	26x16 m	85.30x52.49 ft	30x16 m	98.43x52.49 ft
	A	Internal width	26.47 m	86.84 ft	30.47 m	99.97 ft
	B	Overall external width	53.00 m	173.88 ft	57.00 m	187.01 ft
	C	Depth	17.70 m	58.07 ft	17.70 m	58.07 ft
	D	Overall external depth	20.70 m	67.91 ft	20.70 m	67.91 ft
	E	Clearance	13.30 m	43.63 ft	13.30 m	43.64 ft
	F	Overall height	16.70 m	54.79 ft	16.70 m	54.79 ft
	G	PA wing – internal width	10.47 m	34.35 ft	10.47 m	34.35 ft
	H	PA wing – overall external width	11.00 m	36.09 ft	11.00 m	36.09 ft
	I	Cantilever depth	2.40 m	7.87 ft	3.50 m	7.87 ft

Loading capacity
Loading capacity		Stage size	26x16 m	85.30x52.49 ft	30x16 m	98.43x52.49 ft
	Main grid	(UDL)	34000 kg	74516 lbs	20000 kg	44091 lbs
		Side wings in total	6000 kg	13227 lbs	6000 kg	13227 lbs
	* See structural reports for exact load positioning

Loading capacity ARNOLD
Loading capacity ARNOLD		Stage size	26x16 m	85.30x52.49 ft	30x16 m	98.43x52.49 ft
	Main grid	(UDL)	44000 kg	97001 lbs	28000 kg	61728 lbs
		Side wings in total	6000 kg	13227 lbs	6000 kg	13227 lbs
	* See structural reports for exact load positioning

Operational specifications
Design standarts	EN 17879 EN 1991-1-4 EN 1993 EN 1999	Event structures – Safety requirements Loads on structures: Wind loads Design of steel structures Design of aluminium structures
Wind management	Out of service In service	28,3 m/s - 100km/h - 62mph (Max. gust windspeed) 17,8m/s - 64km/h - 40mph (Max. gust wind speed)
Wind management	* Calculation based on 100% windproof cladding on rear wall, side walls and side wing fronts *Cladding on side walls and rear wall must be dismantled; the upper half of the side wing fronts can remain covered (e.g. by LED screens)
Ballast	Depending on configuration, side wing, covering, compression beam, guy wires, corner brace, substructure
Canopy & sidewalls	B1 fire retardant canopy on request, kedders profiles optional Silvergrey; other colors or inside black on request B1 fire retardant side nets in compliance with latest Eurocodes
Customised	Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on request
