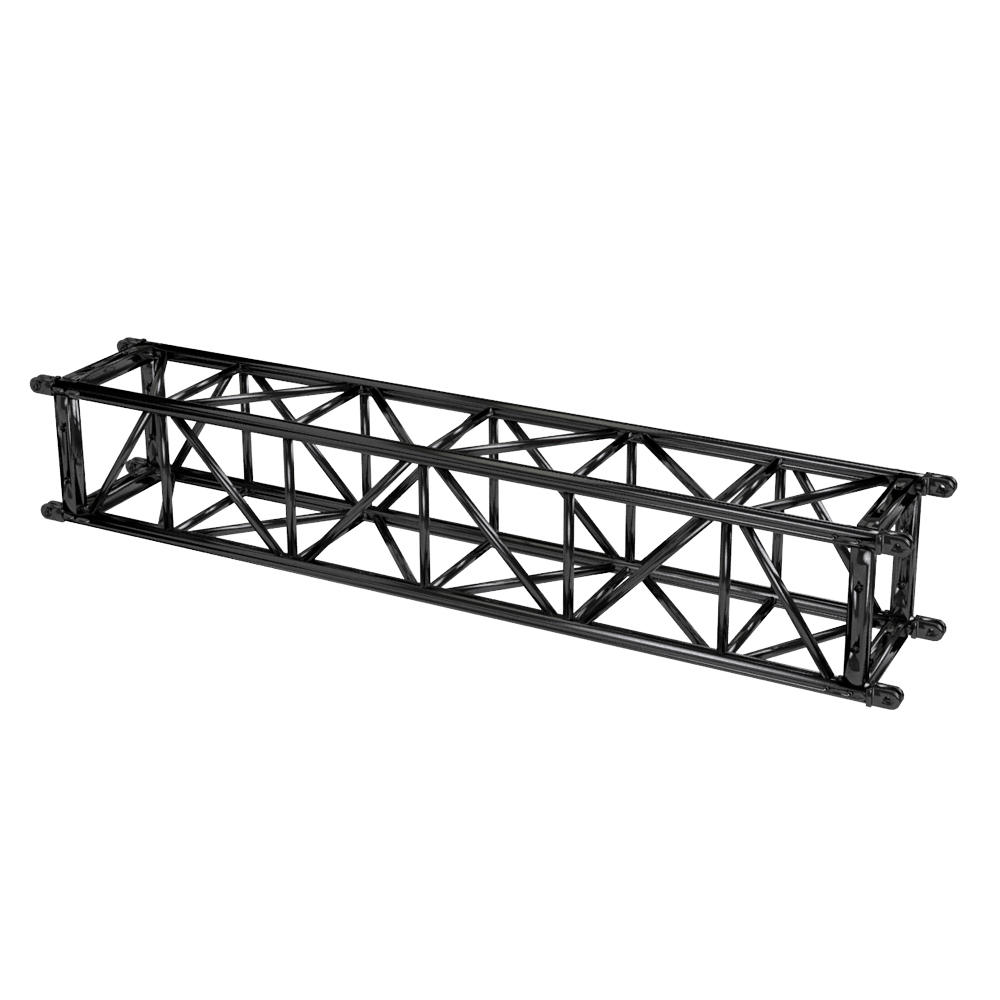

The 530 x 530 mm MILOS 530 Quatro high-strength steel tower section is made from special, high strength steel alloys and is designed for huge ground supports and roof systems with high loads. The sturdy end frames feature conection points on all sides and can easily be climbed due to its horizontal and diagonal bracings. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.

Key benefits

Use of bespoke, high-strength steels
Orientation-free connector arrangement for ease of use
Greatly increases load capacity when used in place of aluminium truss with similar dimensions
Optimised weight to strength ratio
Pinned connectors for increased strength
Matt black, impact-resistant industrial paint finish
End braces with 22mm holes for lateral connections
Connection kit supplied with every truss length

Standard lengths and weights available

Lengths

3.28ft

6.56ft

8.20ft

9.84ft

13.12ft

16.41ft

19.68ft

Weights

177.91lbs

261.60 lbs

301.37 lbs

344.36 lbs

451.07 lbs

509.93 lbs

568.79 lbs

Loading chart

Span

5 m

10 m

15 m

20 m

25 m

31 m

35 m

Point load

11655 kg

7021 kg

4474 kg

3139 kg

2288 kg

1577 kg

1210 kg

Deflection

9 mm

47 mm

107 mm

194 mm

311 mm

498 mm

655 mm

Two point load

5825 kg

5265 kg

3356 kg

2354 kg

1716 kg

1183 kg

908 kg

Deflection

8 mm

59 mm

133 mm

238 mm

374 mm

581 mm

746 mm

Three point load

3885 kg

3510 kg

2237 kg

1570 kg

1144 kg

789 kg

605 kg

Deflection

7 mm

55 mm

125 mm

224 mm

354 mm

554 mm

716 mm

Four point load

2914 kg

2852 kg

1864 kg

1308 kg

954 kg

657 kg

504 kg

Deflection

7 mm

57 mm

131 mm

235 mm

370 mm

576 mm

740 mm

Distributed load

2331 kg

1141 kg

597 kg

314 kg

183 kg

102 kg

69 kg

Deflection

6 mm

47 mm

130 mm

233 mm

368 mm

573 mm

737 mm

Loading chart

Span

16,4 ft

32,8 ft

49,2 ft

65,6 ft

82 ft

101,7 ft

114,8 ft

Point load

25699 lbs

15481 lbs

9865 lbs

6921 lbs

5045 lbs

3477 lbs

2668 lbs

Deflection

0,35 inch

1,83 inch

4,17 inch

7,57 inch

12,13 inch

19,42 inch

25,55 inch

Two point load

12844 lbs

11609 lbs

7400 lbs

5191 lbs

3784 lbs

2609 lbs

2002 lbs

Deflection

0,31 inch

2,30 inch

5,19 inch

9,28 inch

14,59 inch

22,66 inch

29,09 inch

Three point load

8566 lbs

7740 lbs

4933 lbs

3462 lbs

2523 lbs

1740 lbs

1334 lbs

Deflection

0,27 inch

2,15 inch

4,88 inch

8,74 inch

13,81 inch

21,61 inch

27,92 inch

Four point load

6425 lbs

6289 lbs

4110 lbs

2884 lbs

2104 lbs

1449 lbs

1111 lbs

Deflection

0,27 inch

2,22 inch

5,11 inch

9,17 inch

14,43 inch

22,46 inch

28,86 inch

Distributed load

1566 lbs

767 lbs

401 lbs

211 lbs

123 lbs

69 lbs

46 lbs

Deflection

0,23 inch

1,83 inch

5,07 inch

9,09 inch

14,35 inch

22,35 inch

28,74 inch

S-QTPT-A4-EN

S-QTPT 53 Tower Steel Truss

530 mm tower truss sections that let you take ultra heavy loads ultra high

Code: S-QTPT

Width: 530 mm

Height: 530 mm

Main Tube: 60.3 x 4 mm

Braces: 33.7 x 4 mm

Span: 35 m

Self Weight: 52 kg/m (for 3m piece)
