Detailed information

Basic info Lengths & Weights Download section

Key benefits

  • Free-standing MT Tower LED Screen Support solution
  • Wide range of system options available to suit specific screen size & weight
  • Self-climbing towers (MT1 / MT2 / MT3) with electric or manual hoists
  • EXE hoists recommended
  • Screwjack feet for quick & easy levelling
  • Fast connection for quick, simple and secure assembly
  • Stabilisation via front & back integrated cross tension wires
  • Powder coat colour finish available on request
Technical specification
Dimensions   LED screen size 6x4 m 19,70x13,10 ft
A Internal width 7,36 m 24.15 ft
B Overall external width 8,50 m 27.89 ft
C Overall external depth 6,83 m 22.41 ft
D Clearance 6,86 m 22.51 ft
E Overall height 8,52 m 27.95 ft

Loading capacity
Loading capacity   LED screen size 6x4 m 19,70x13,10 ft
LED Screen 6x point loads equally divided 416 kg 916 lbs
  3x point loads equally divided 833 kg 1835 lbs
  Max. total load 2500 kg 5511 lbs
* See structural report for exact load positioning

Operational specifications
Design standarts DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800		 Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management Max. wind speed incl screen 28m/s - 100km/h - 62mph (Max basic wind speed)
* Screen to be stabilised against swinging by cross truss at bottom of screen
Ballast 4x 1700kg / 3744lbs at the end of each outrigger
Figure based on screwjack to timber spreader to rubber to concrete / asphalt
Customized Customisation, i.e. truss configuration, alternative dimensions, on requirement.
Always verify with Milos your screen dimensions, weight and rigging plan for correct configuration

Transportation data
Self-weight LED screen size 6x4 m 19,70x13,10 ft
* Exact self-weight depends on configuration 750 kg 1652 lbs
Transport volume * Packed in carton boxes and bubble foil 6 m3 212 ft3

LSG2

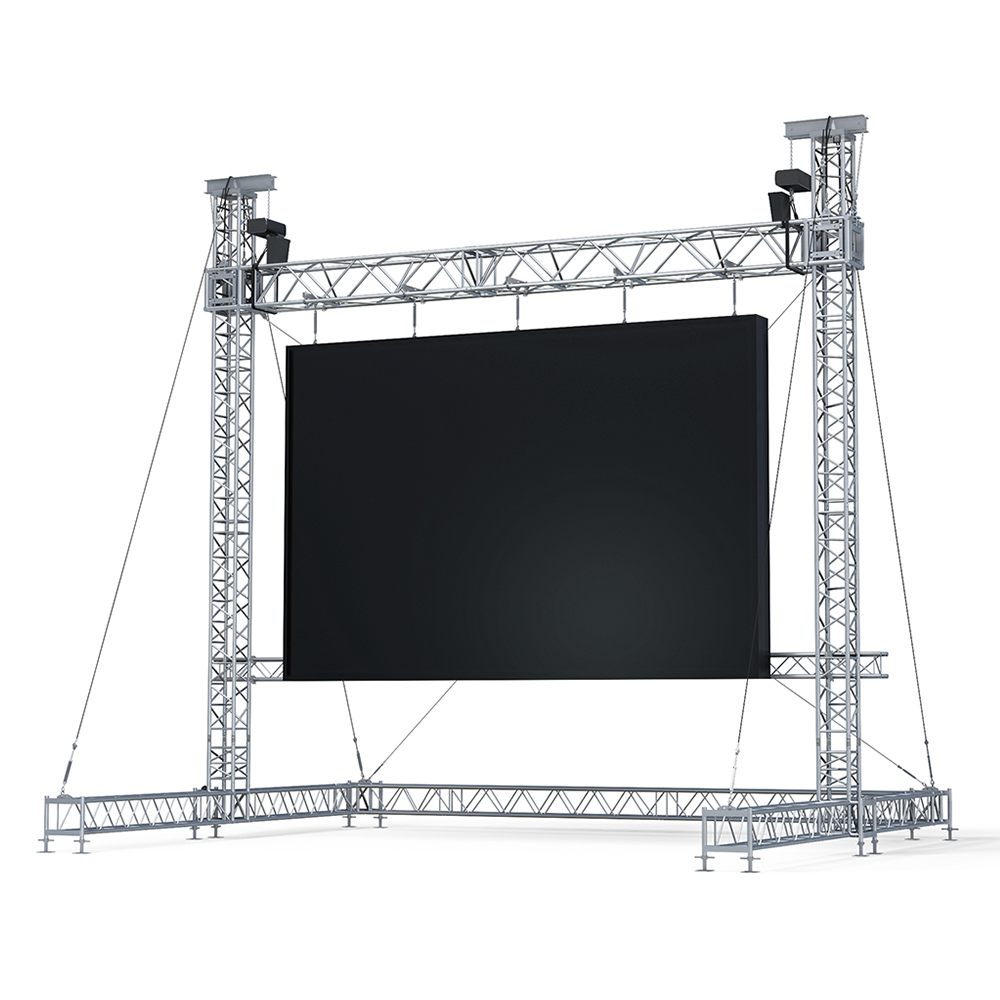

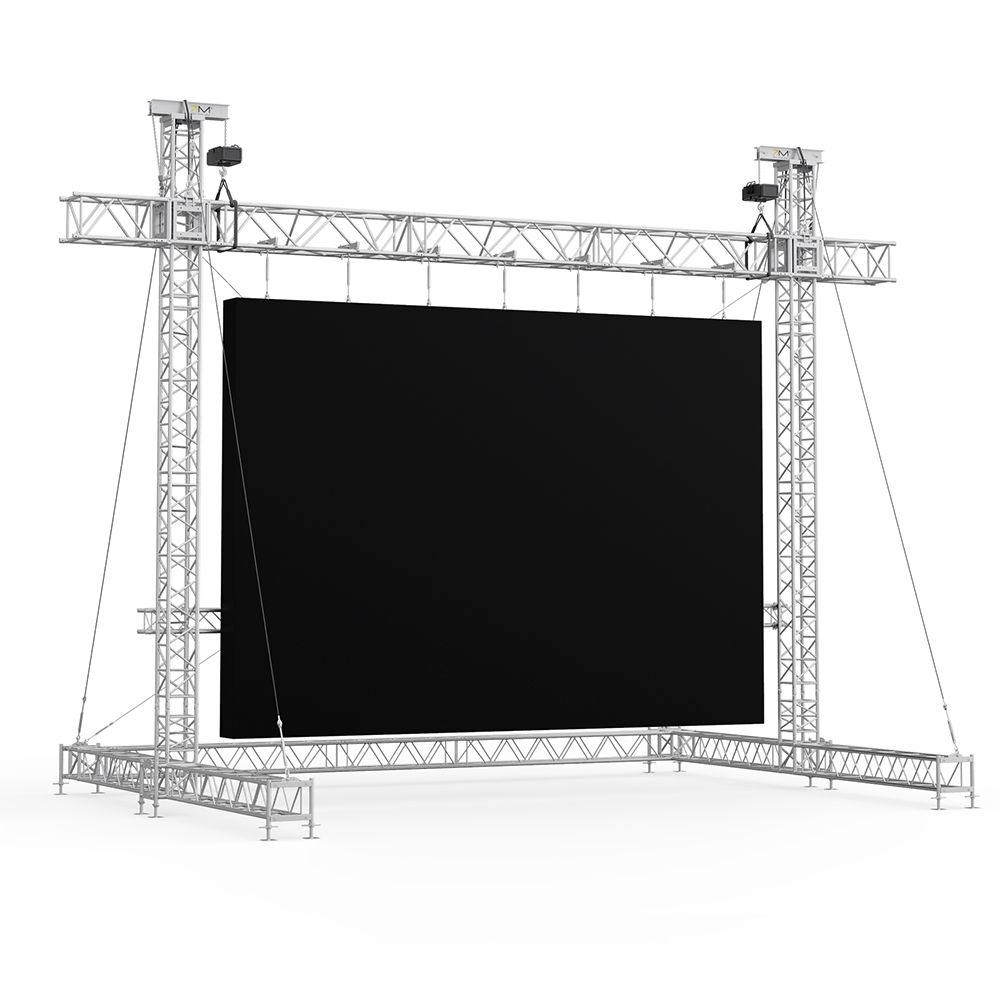

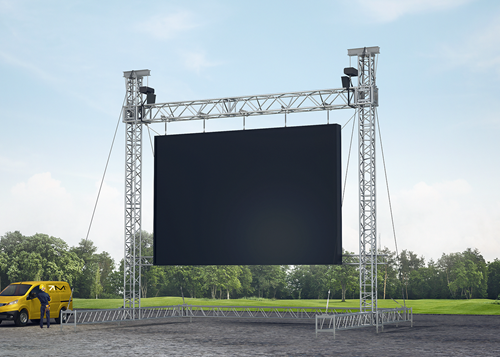

LSG2 LED Screen structures

Compact LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly. Wide range of options to suit specific screen size & weight.
