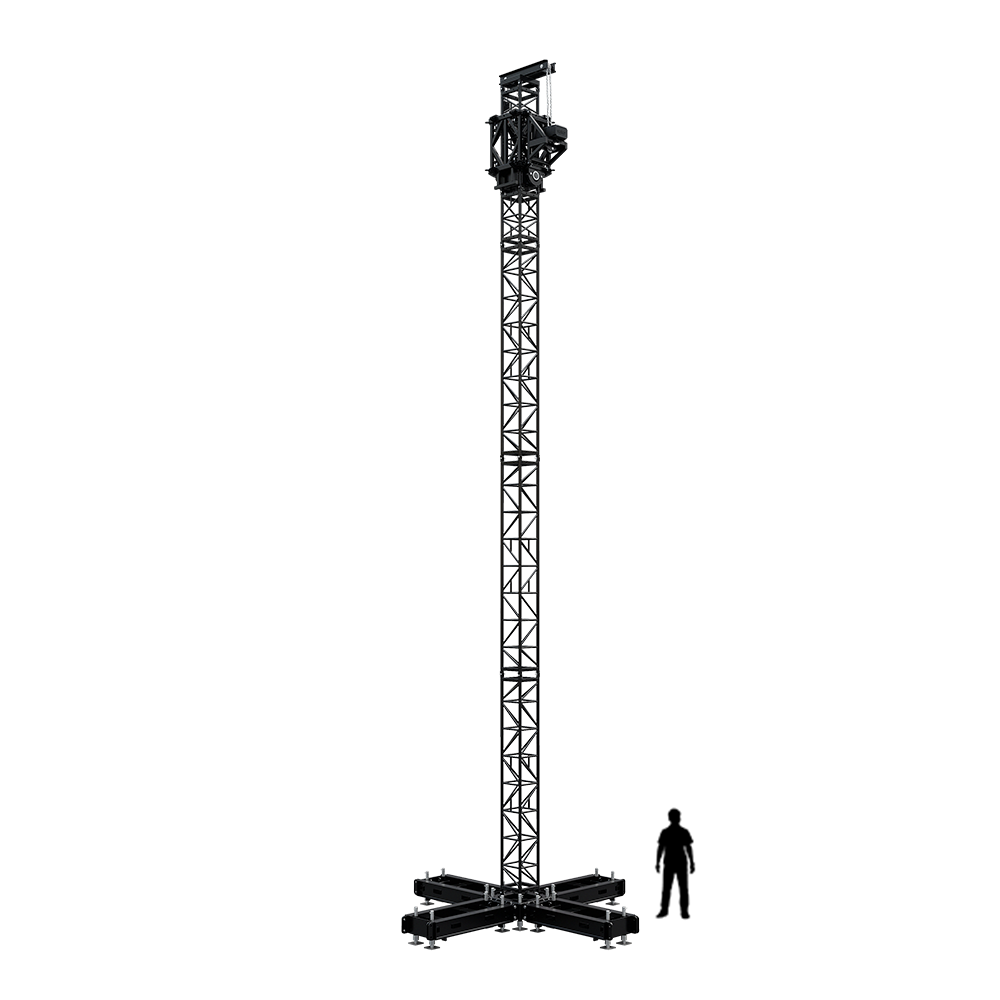

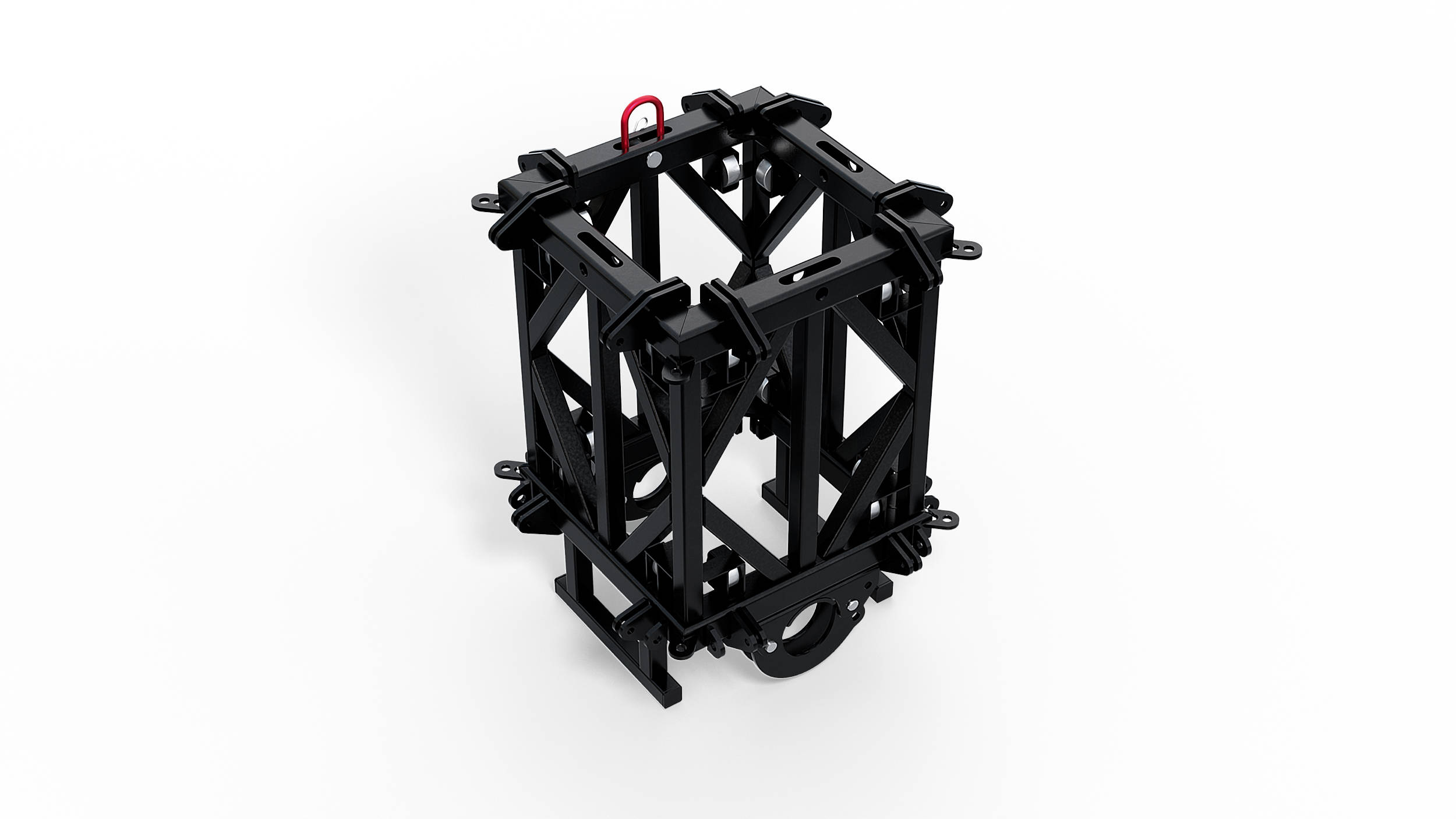

S-MT-P Steel Tower

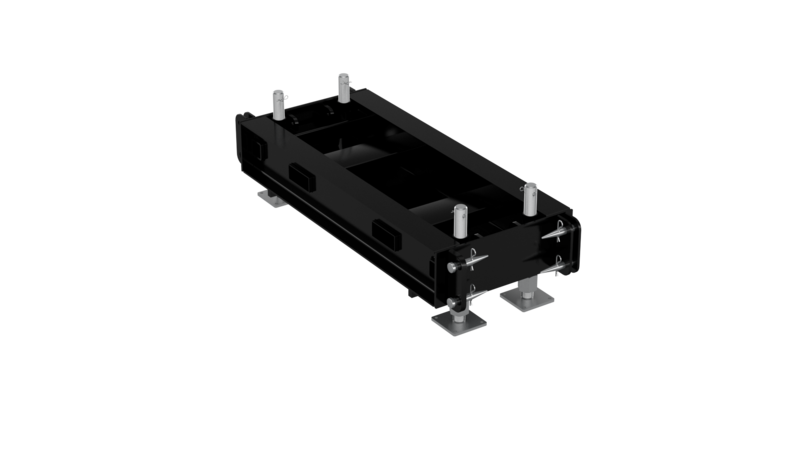

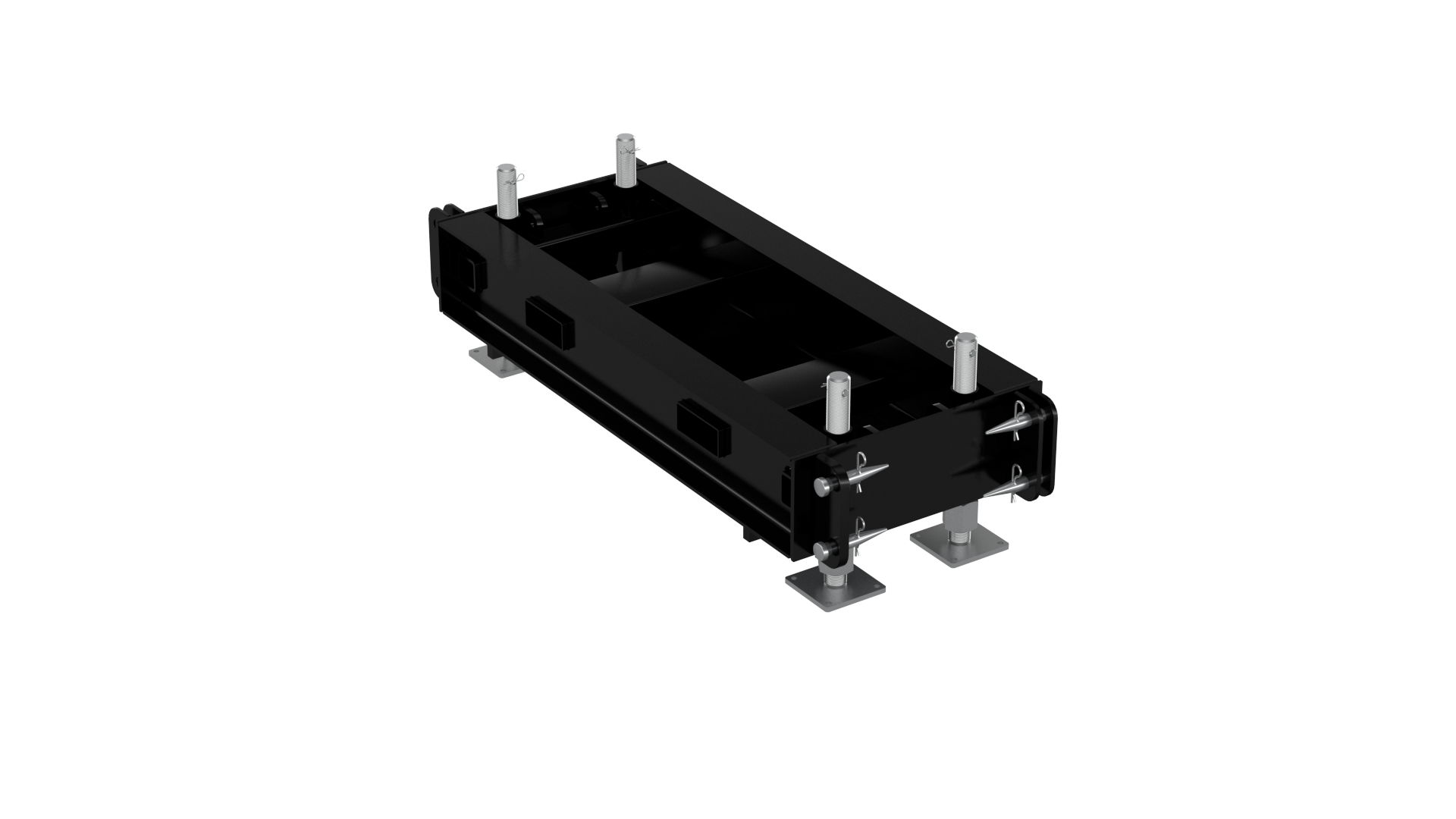

The tower is stable and robust thanks to its connection to the base, which can be extended by outriggers and has also guy-wire attachment points. Adjustable spindles allows you optimal height adjustment.

Constructed with MILOS S-QTPT Ultra-High-Strength steel Truss (530x530mm: 35m Span with 69kg/m UDL). Pinned connectors are used to increase safety and strength.

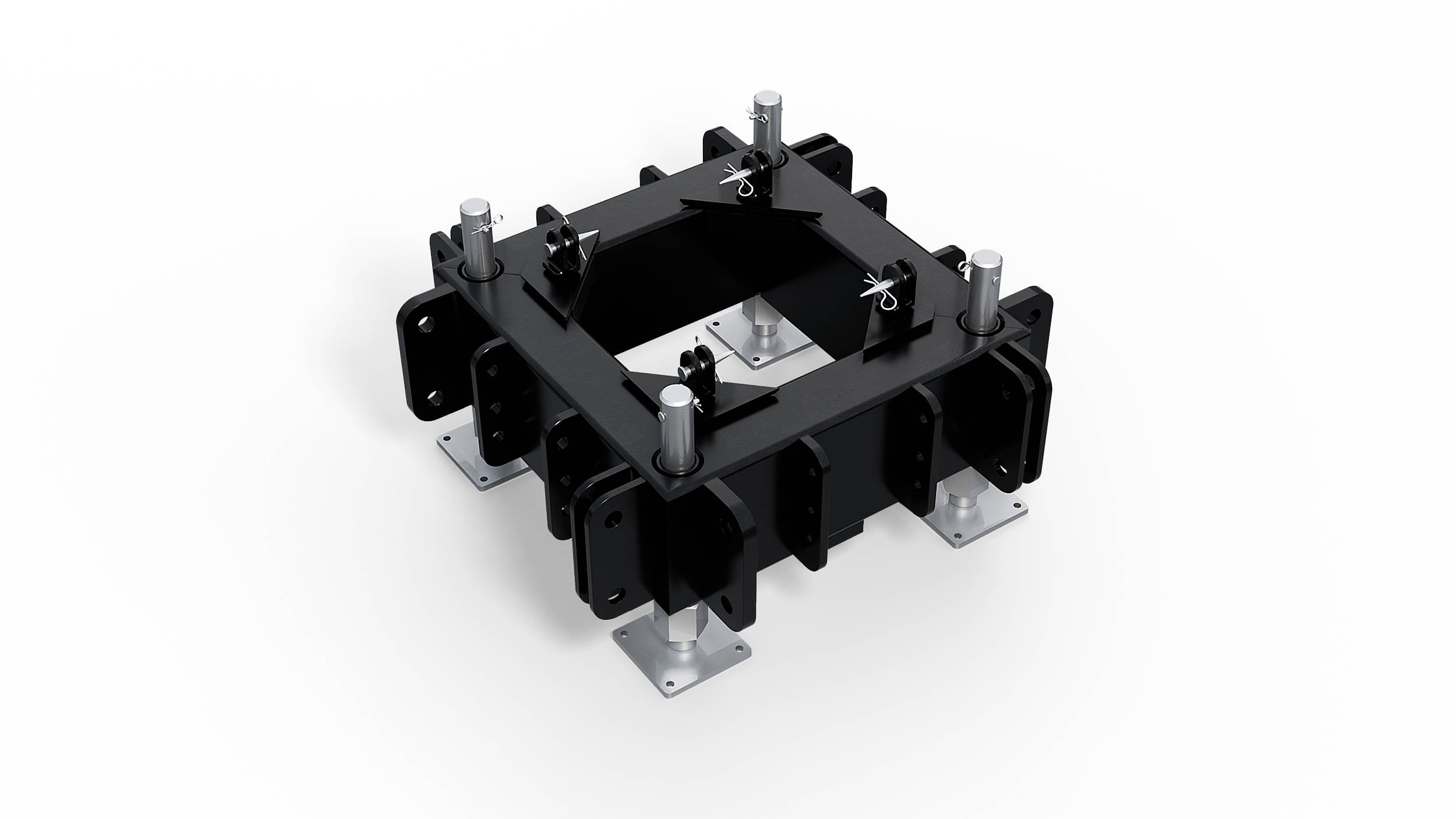

When used as 20 m high, free-standing tower integrated in S-MT-P-01 Base, the load capacity is up to 25145 kg.
When used as 20 m high tower in a guy-wire-braced ground support, the load capacity is up to 47228 kg, or when used with Locking Unit to 45333 kg.
