MILOS. Flexibility Behind Your Show.

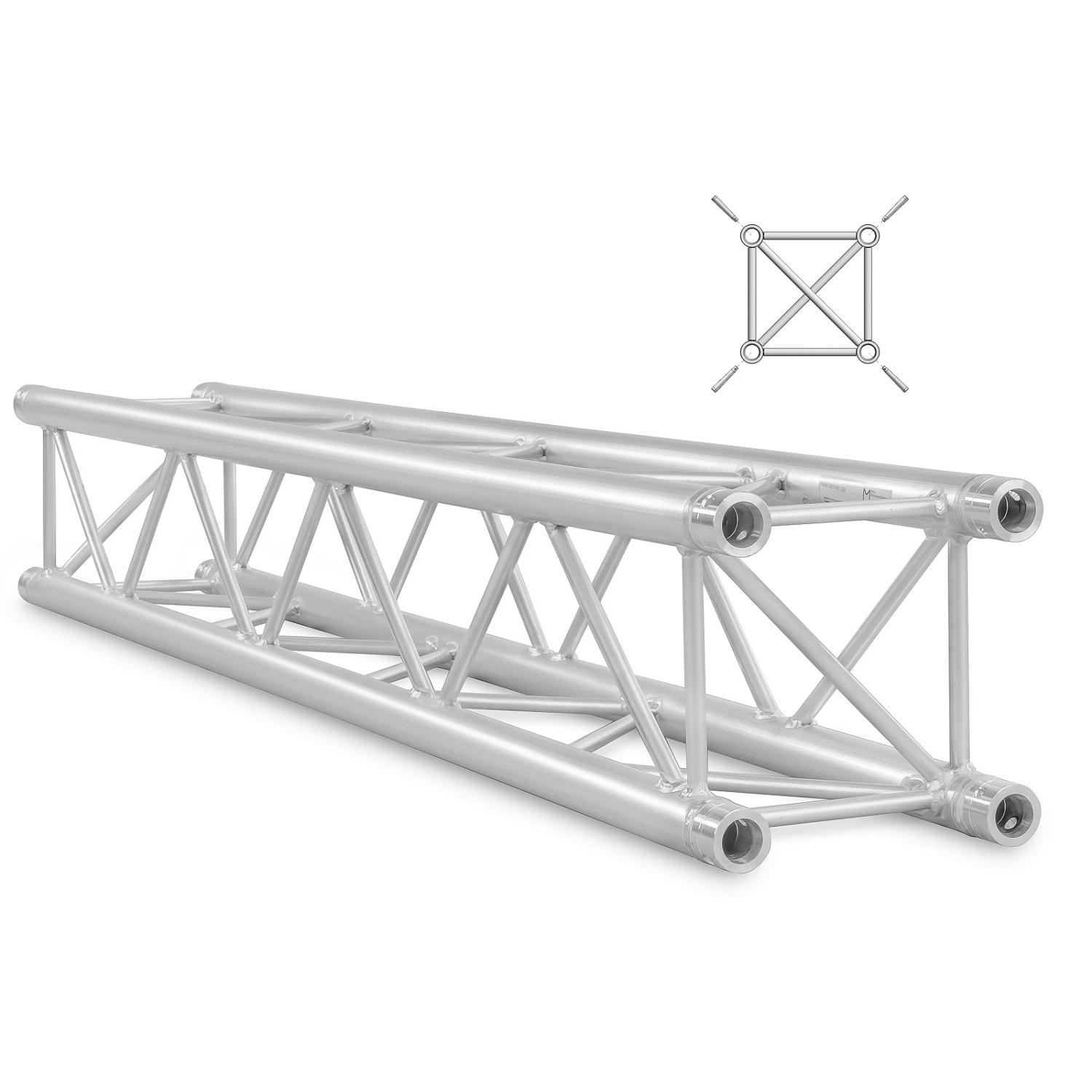

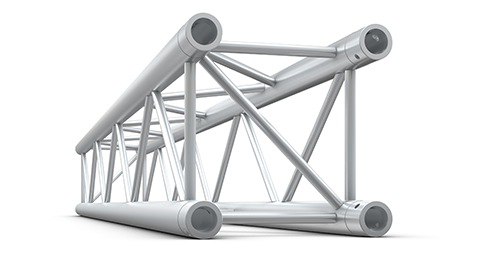

Quatro Regular Quatro Heavy duty Trio Regular Trio Heavy duty Duo Regular Duo Heavy duty

Stlylish modular pipe & drape solution compatible with 200/400/500/600 series cell clamps and Xtruss accessories

Code: QTV

Main Tube: 1.89 x 0.12 inch

Braces: 0.63 x 0.08 inch
QTVU: 0.78 x 0.08 inch

Available Length: 0.34 - 16.41 ft

Max. SWL: 3747.85 lbs

Size: 11.33 x 11.33 inch

Span: 65.61 ft

Available colors:

Detailed information

Description

The M290 system is our mid-sized stage truss line that can be used for both small and large applications. The M290 aluminum truss comes in a "B" and "V" range, which are designed for both large and small applications. The "V" Range is for heavy duty use, while the "B" Range is for medium duty use. Both trussing systems offer excellent spanning and weight loading capabilities while providing a decorative touch!
Call or e-mail us today for more information or to request a quote.

Key benefits

Certified 48mm tube heavy-duty M290 Series truss range
Great free-span & loading characteristics (upto 20m / 65.61 ft)
Keystone system used within PA & Rigging Towers & Roofs
Connection kit supplied with every truss length & junction
Durable construction with diagonal anti-twist end brace
Cell clamp 200 / 400 / 500 / 600 series compatible
Fast connection for quick, simple and secure assembly
Xtruss accessories compatible
Powder coat colour finish available on request

Downloads

M290HD

Contact Us

USA

Asia

Click here to contact us

M290 Regular - Standard lengths and weights available
	1.64 ft	3.28 ft	4.92 ft	6.56 ft	8.2 ft	9.84 ft	13.12 ft	16.41 ft
Duo	3.52 lbs	5.73 lbs	7.94 lbs	9.92 lbs	11.90 lbs	14.55 lbs	18.29 lbs	22.71 lbs
Trio	5.73 lbs	9.47 lbs	13.22 lbs	16.98 lbs	20.06 lbs	23.81 lbs	31.09 lbs	39.68 lbs
Quatro	6.5 lbs	13.01 lbs	19.62 lbs	26.01 lbs	32.52 lbs	39.02 lbs	52.03 lbs	65.04 lbs

M290 Heavy Duty - Standard lengths and weights available
	1.64 ft	3.28 ft	4.92 ft	6.56 ft	8.2 ft	9.84 ft	13.12 ft	16.41 ft
Duo	3.96 lbs	6.83 lbs	9.57 lbs	12.57 lbs	15.21 lbs	18.07 lbs	23.70 lbs	29.34 lbs
Trio	6.39 lbs	11.02 lbs	15.65 lbs	20.50 lbs	25.13 lbs	29.76 lbs	39.68 lbs	48.50 lbs
Quatro	8.59 lbs	15.43 lbs	21.83 lbs	27.56 lbs	33.28 lbs	40.35 lbs	52.91 lbs	65.48 lbs
