M520 - High Capacity truss range including compact folding option

High-capacity truss series for outdoor stages, concert stages or podiums featuring pin holes at 90 degree angles to the ground for convenient access on flat surfaces.
Available colors:
Code
FTP
Main Tube
2 x 0,16 inch
Braces
0,96 x 0,12 inch
Available Length
3,28 - 13,2 ft
Size
22,80 x 20,83 inch
Span
78,74 ft
M520 - High Capacity truss range including compact folding option
M520 - High Capacity truss range including compact folding option

Detailed information

Description

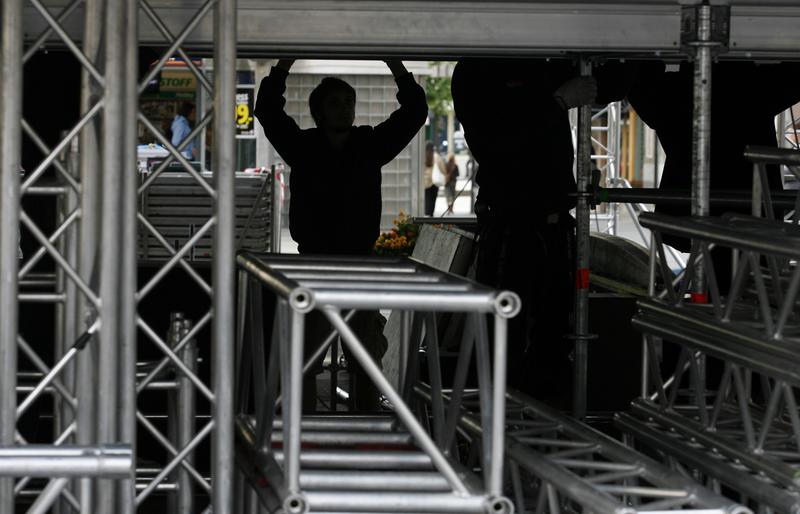

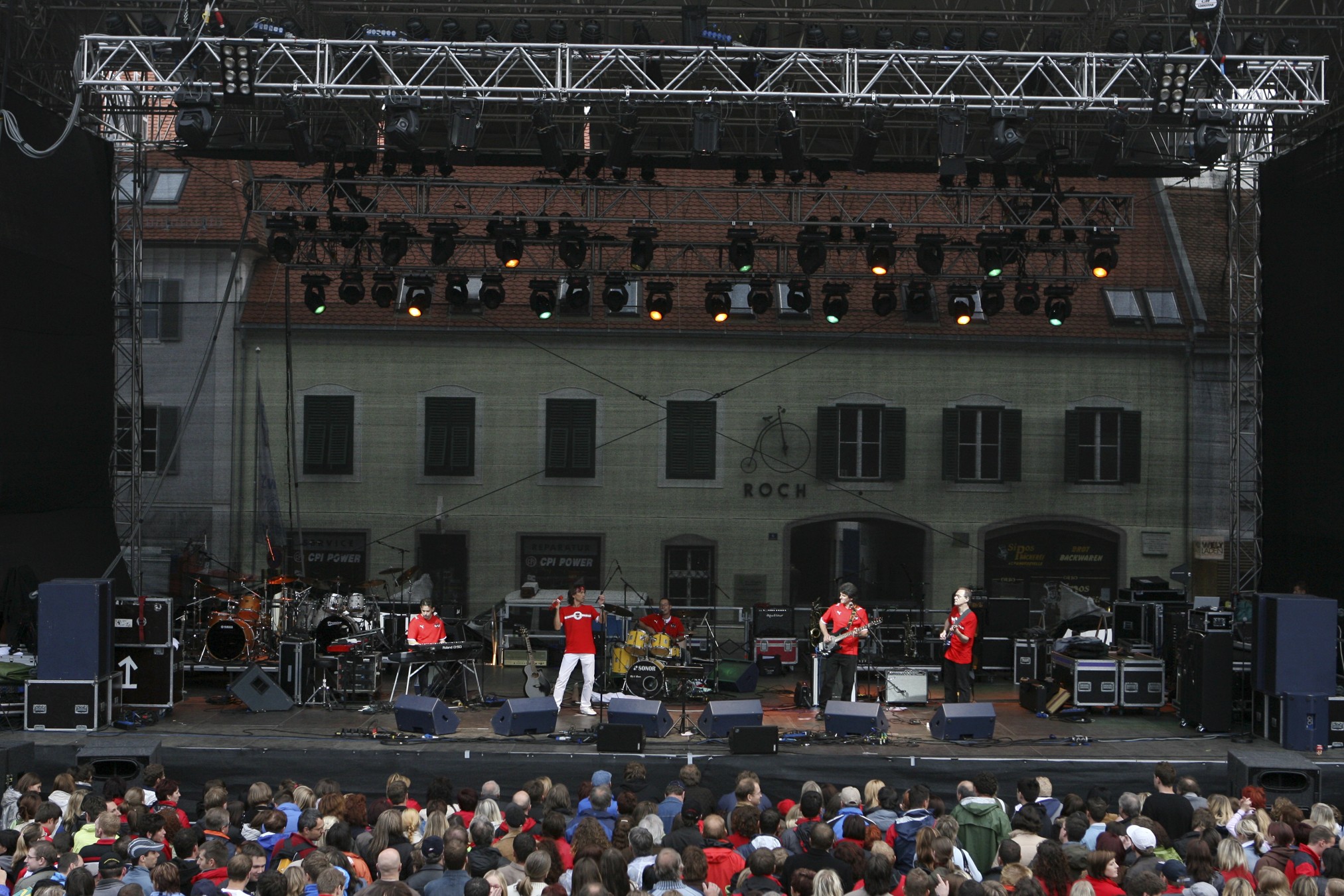

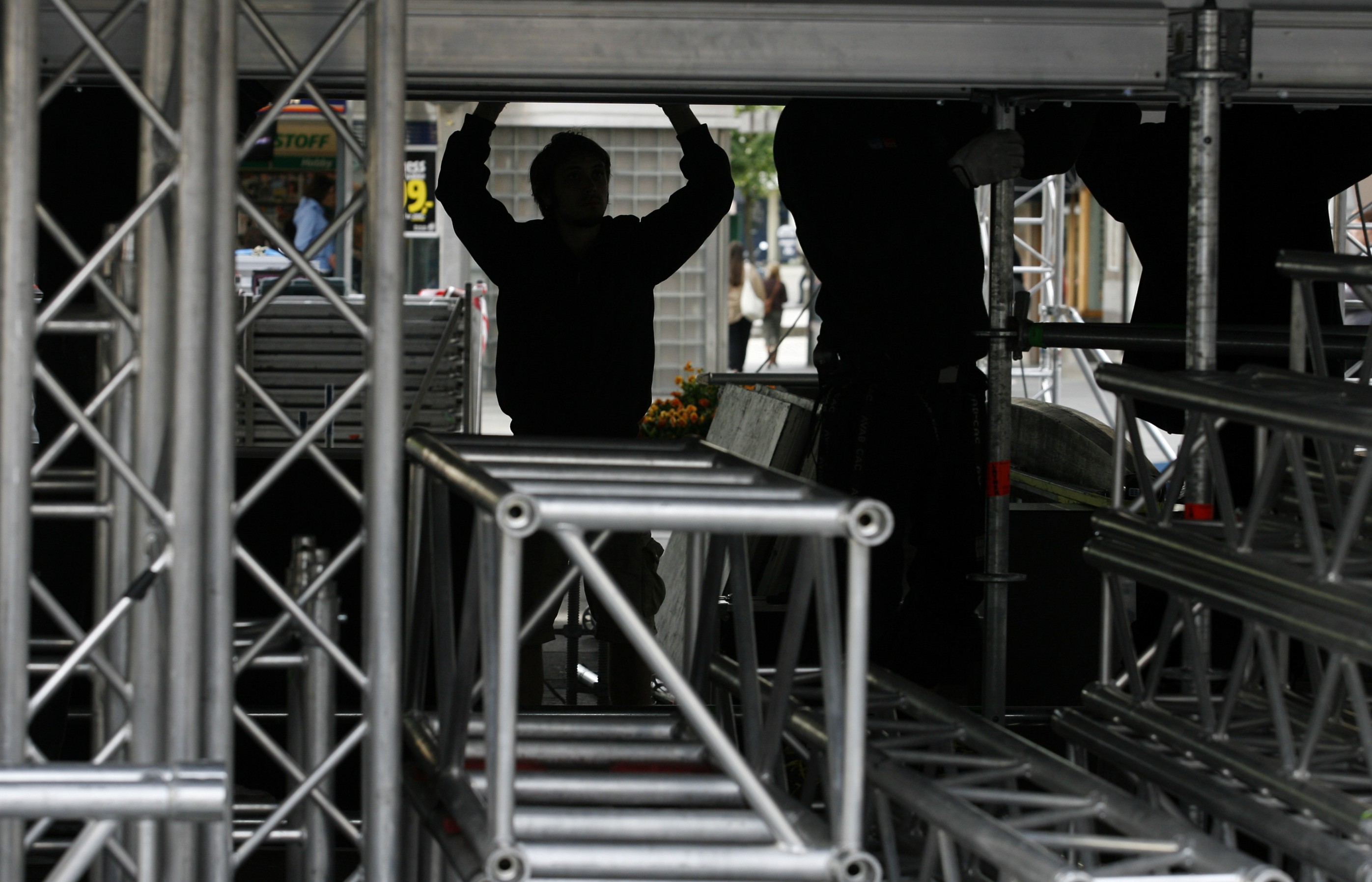

M520 is a high-capacity truss system which adapts to its users' needs. All events which require an outdoor stage, concert stage or podium will be well-served by the M520. Pin holes are located at a 90 degree angle to the ground for convenient access when truss is lying on a flat surface.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • High-capacity M520 Series truss range

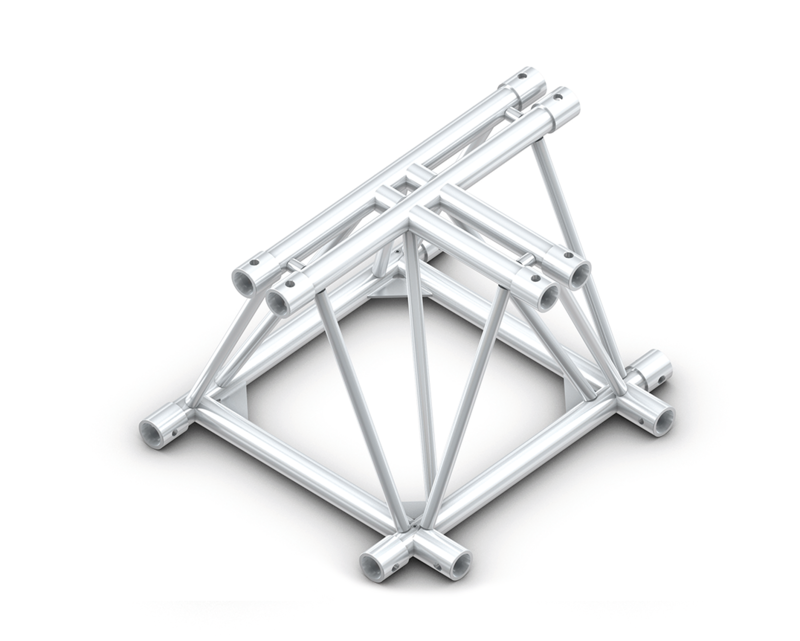

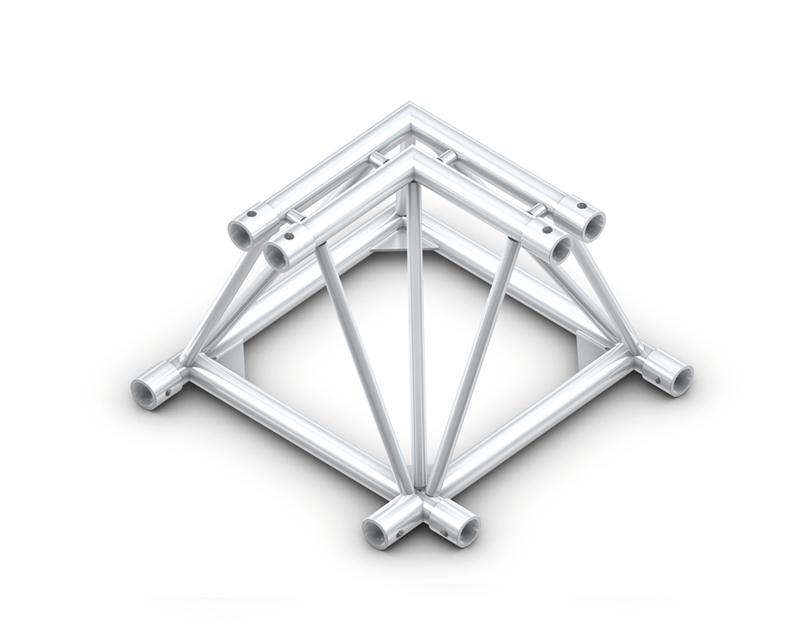

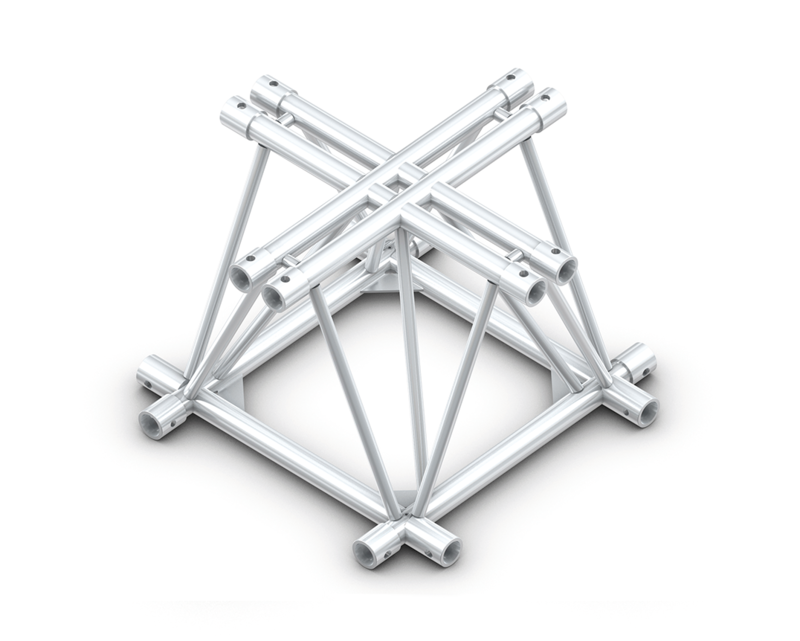

  • Connection kit supplied with every truss length & junction

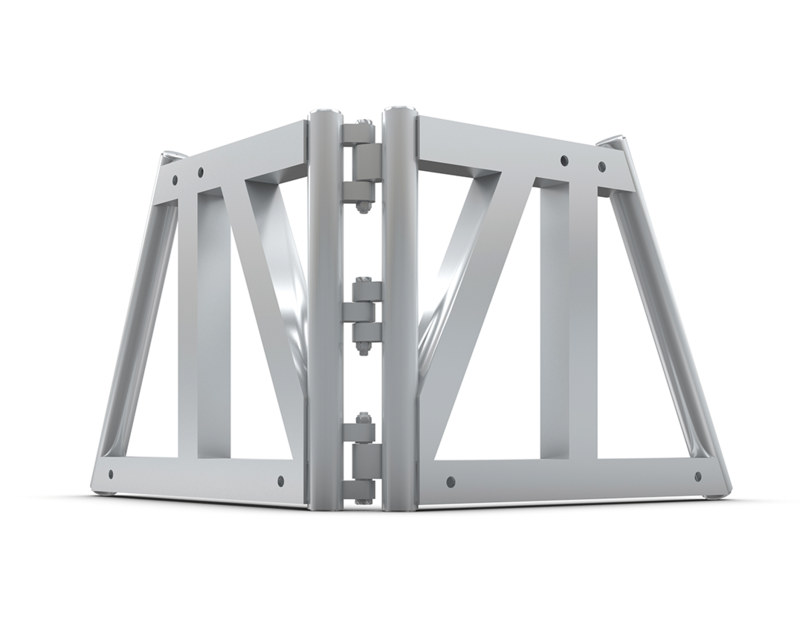

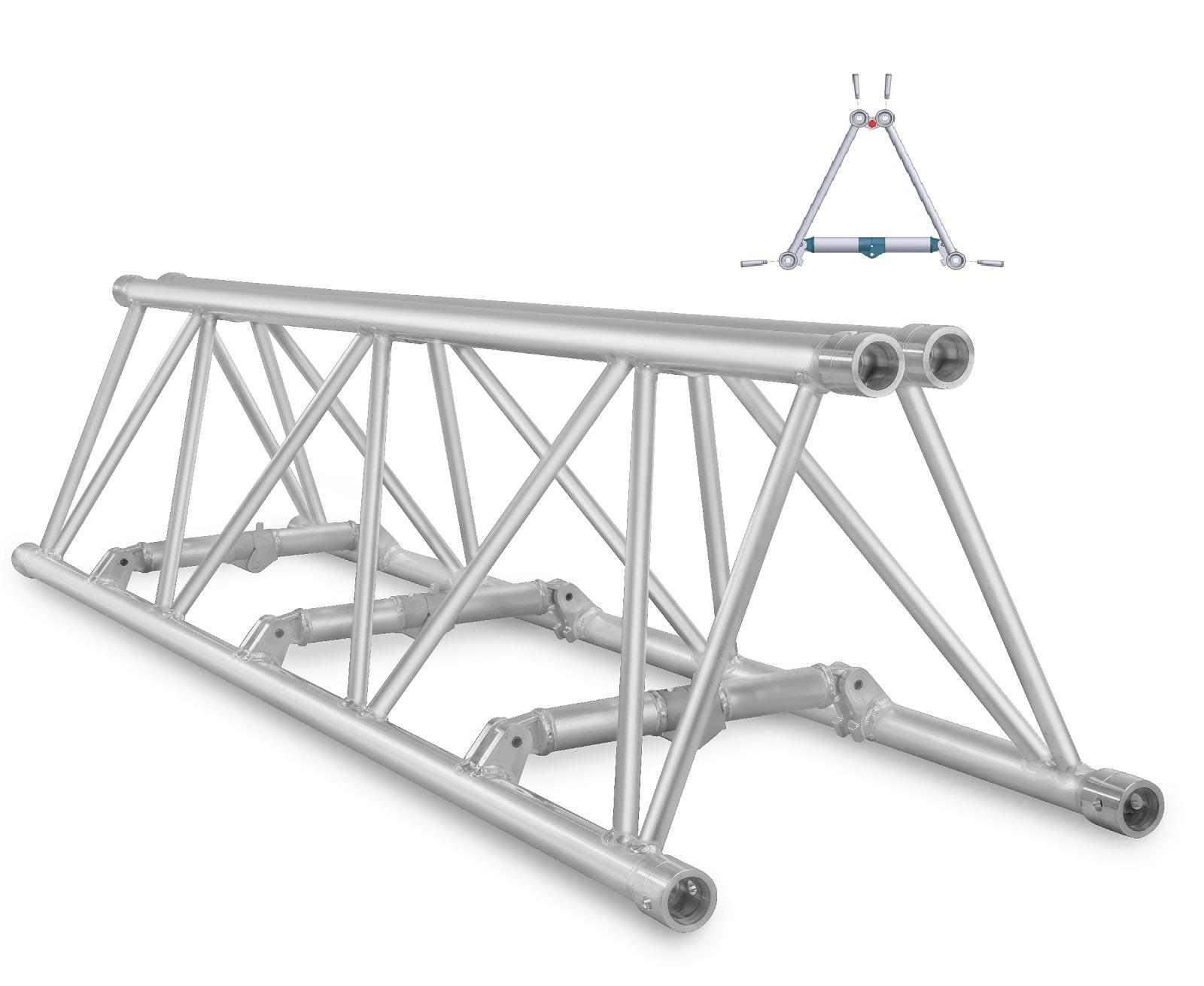

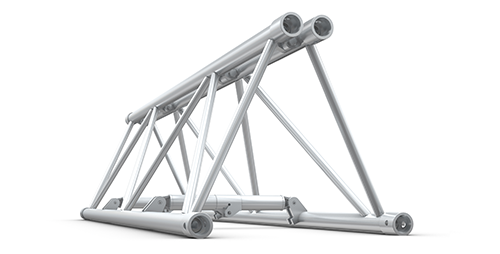

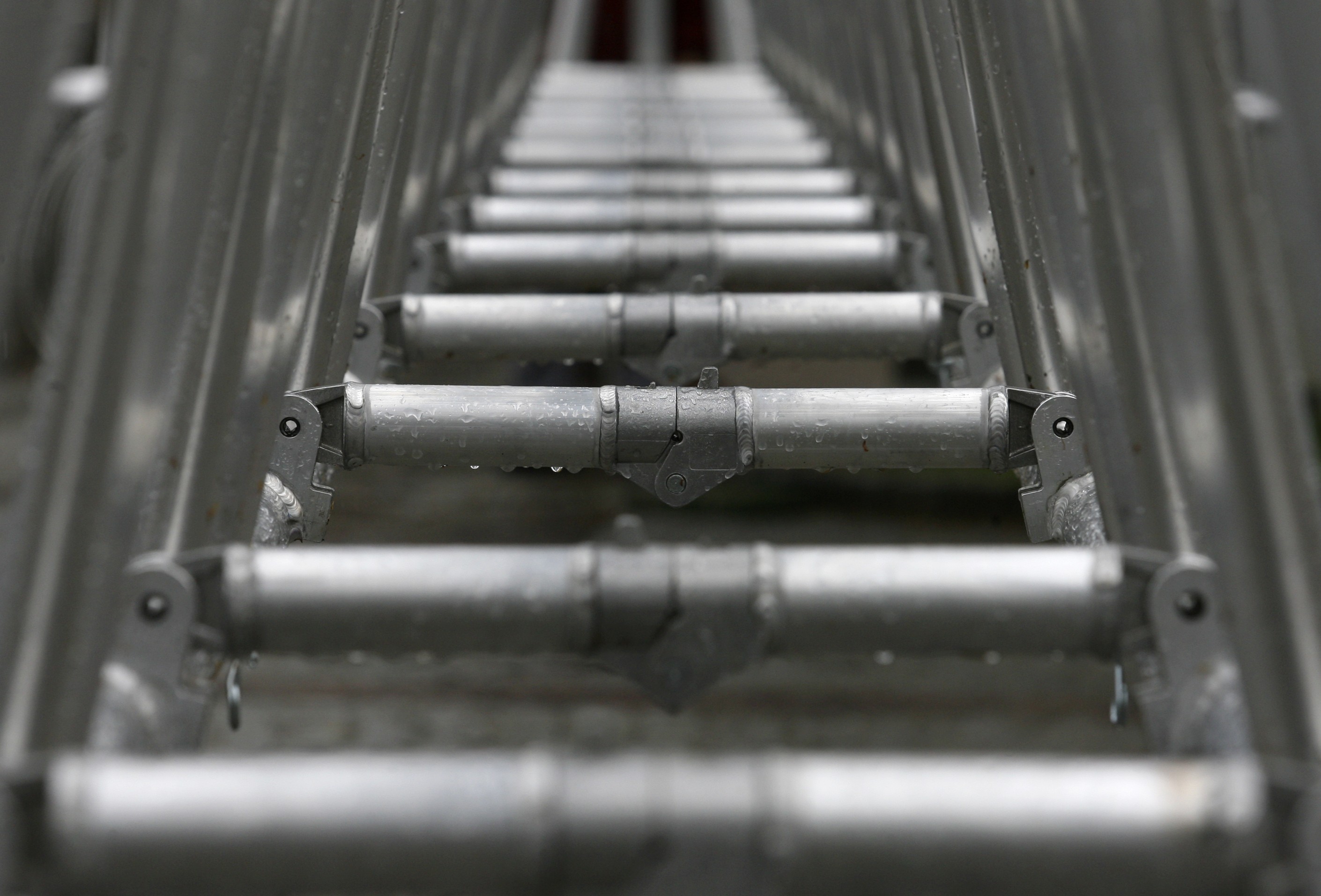

  • Square or compact folding formats available
  • Cell clamp 200 / 400 / 500 / 600 series compatible

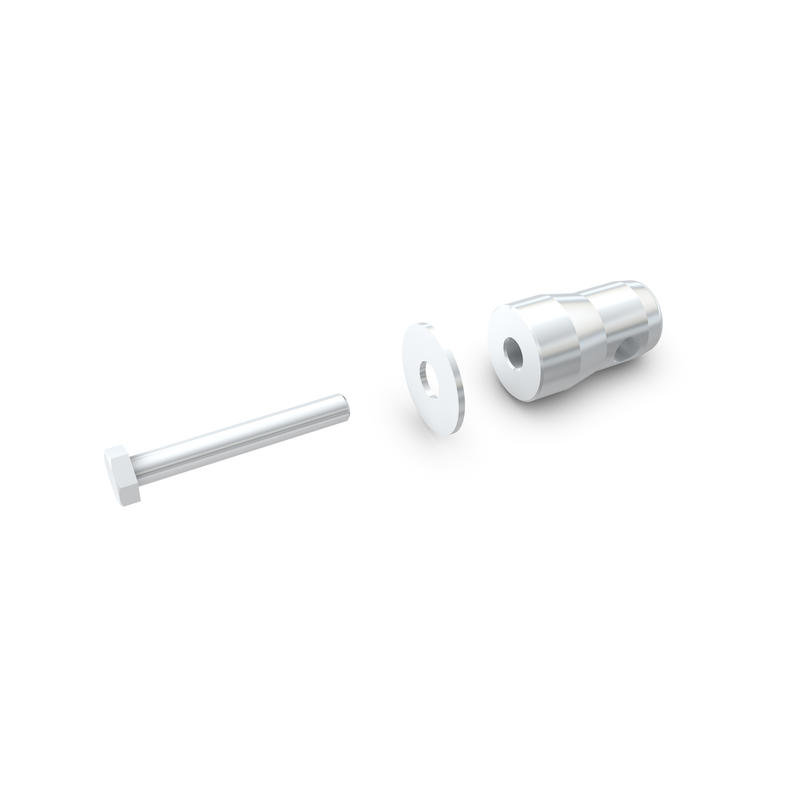

  • Super-size conical connection for maximum rigidity
  • Powder coat colour finish available on request
  • User-friendly tapered pin holes with 90 degree orientation to ground when laid flat for ease of assembly
  • Great free-span & loading characteristics (up to 24m / 78.74 ft)
M520 - Standard lengths and weights available
  3.28 ft 3.94 ft 4.92 ft 5.25 ft 6.56 ft 7.87 ft 8.2 ft 9.84 ft 11.48 ft 13.12 ft
Fold 28.66 lbs 31.74 lbs 33.95 lbs 43.87 lbs 51.14 lbs 62.85 lbs 63.93 lbs 70.55 lbs 75.39 lbs 92.37 lbs
Quatro 37.48 lbs 40.78 lbs 49.60 lbs 49.82 lbs 60.85 lbs 69.69 lbs 72.75 lbs 84.44 lbs 97.00 lbs 108.03 lbs
